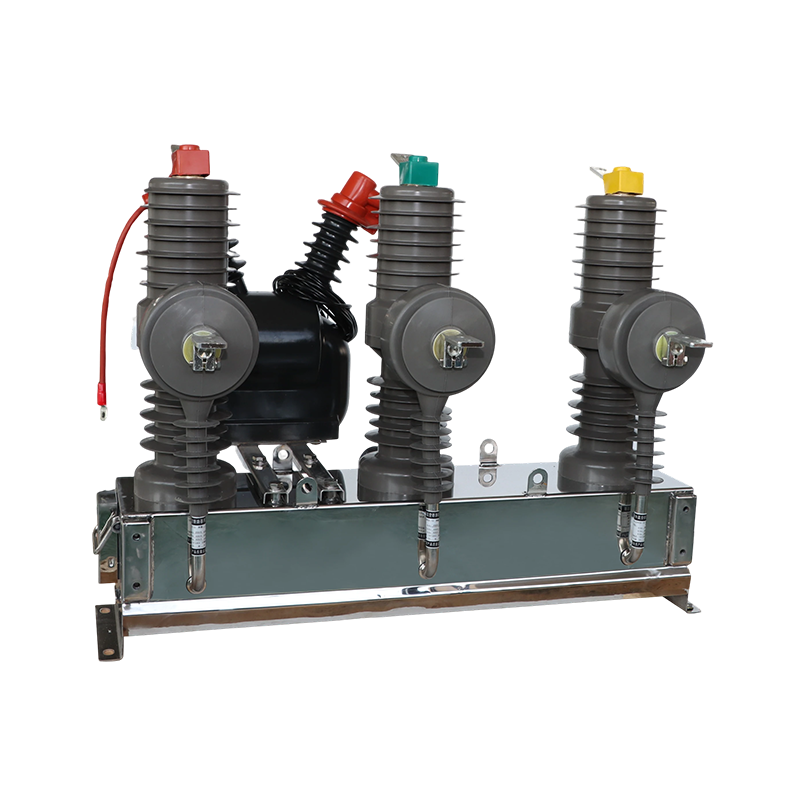

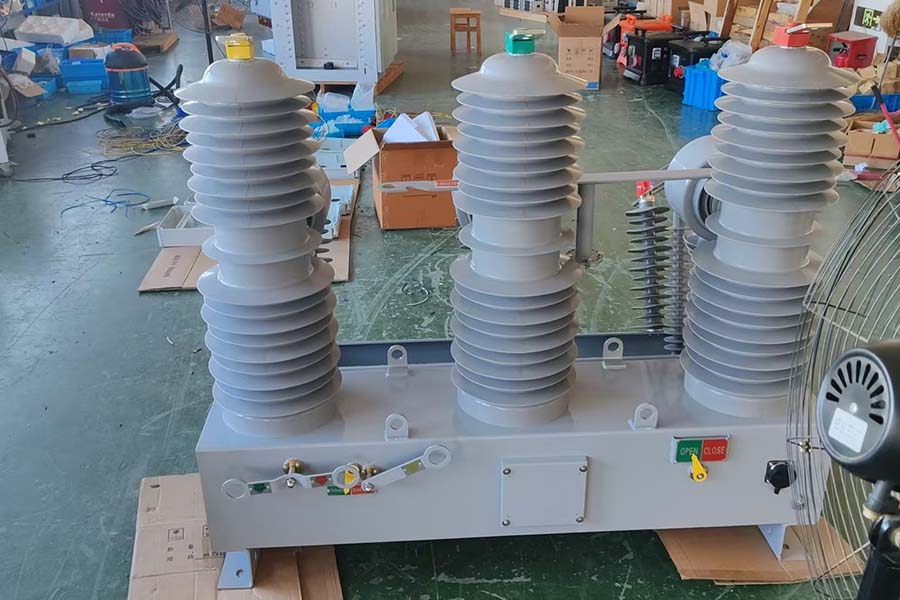

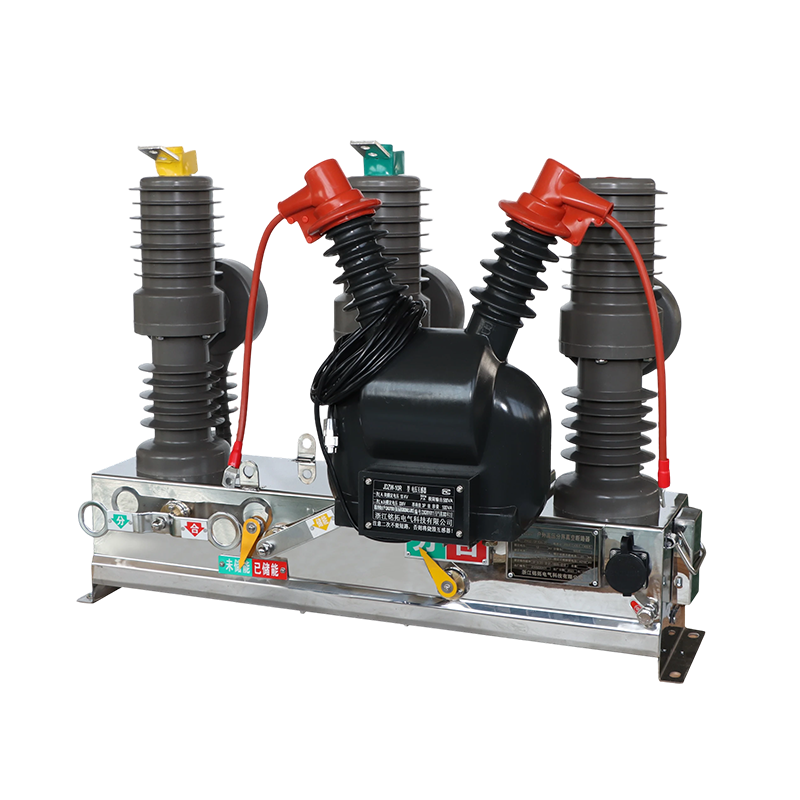

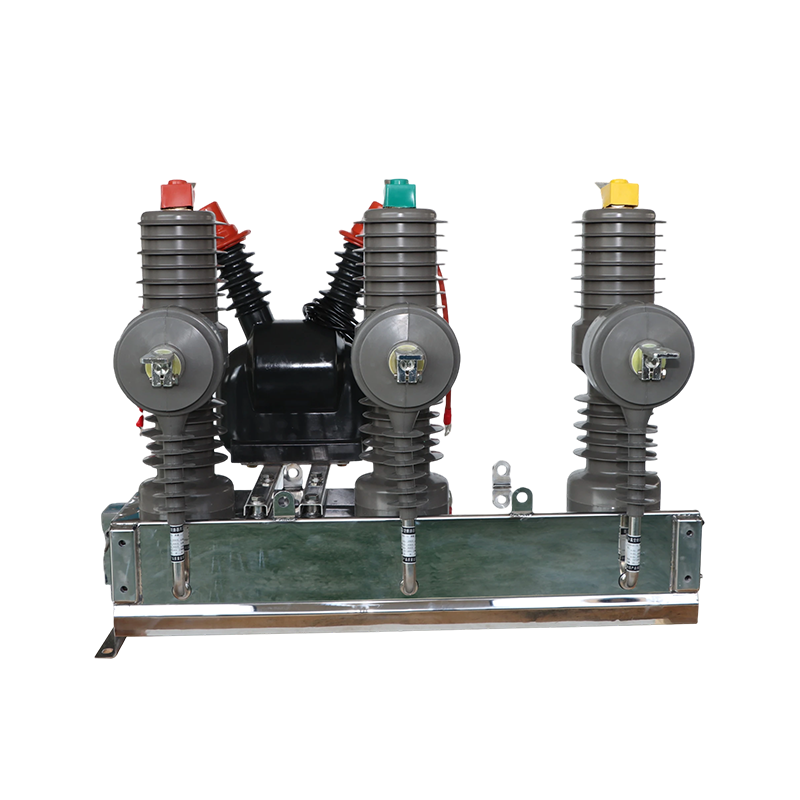

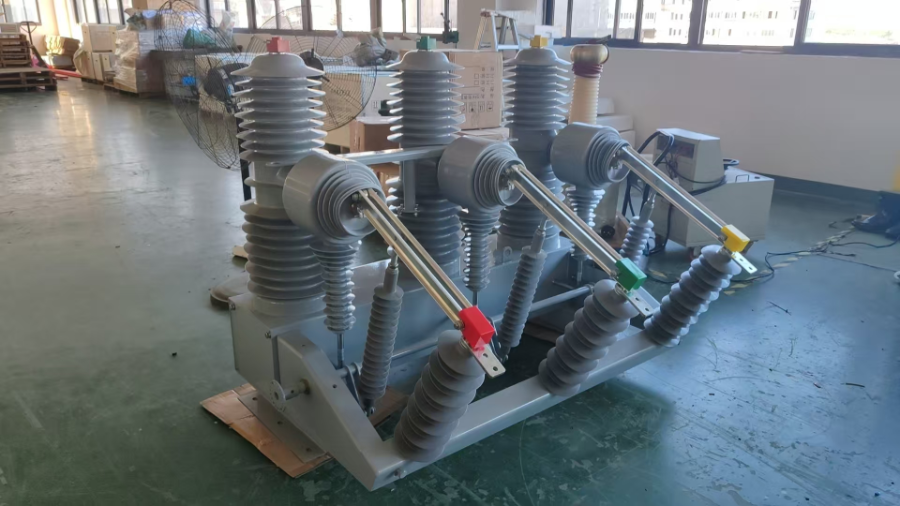

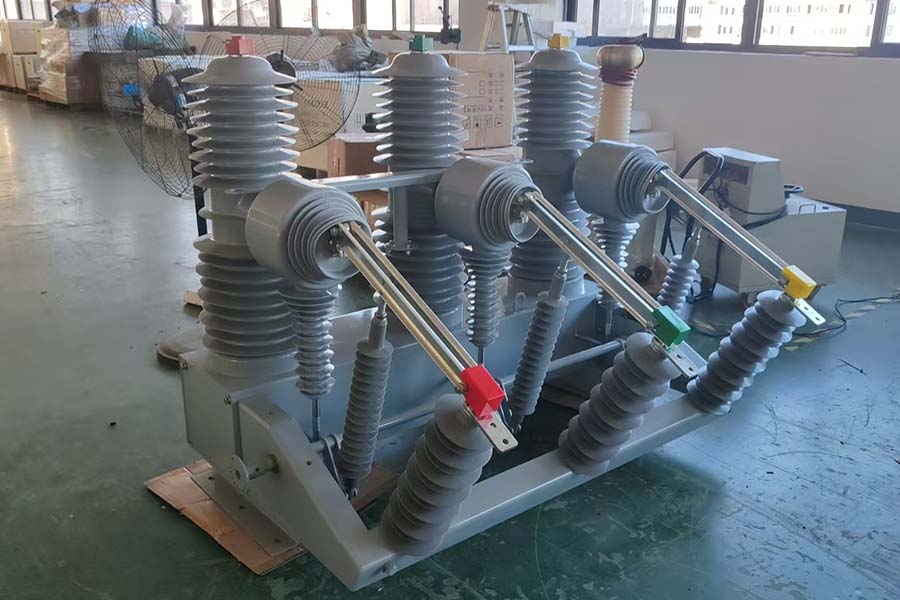

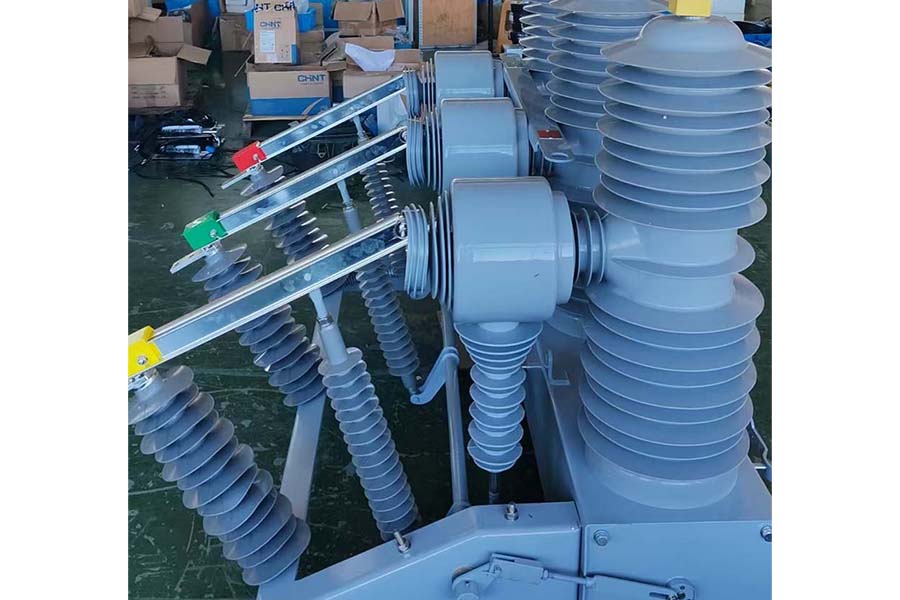

ZW32 Outdoor Vacuum Circuit Breaker for Pole-Mounted Medium Voltage Distribution

Description:

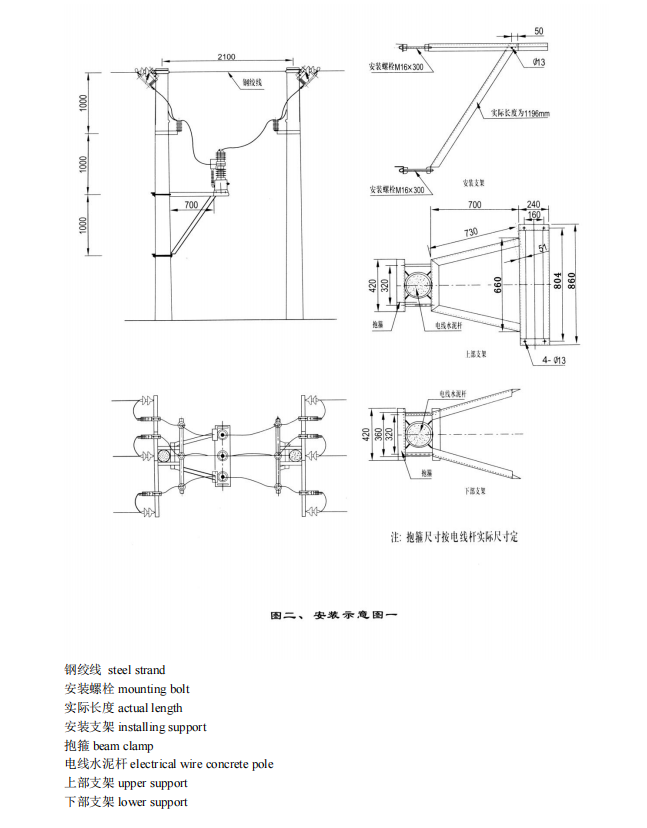

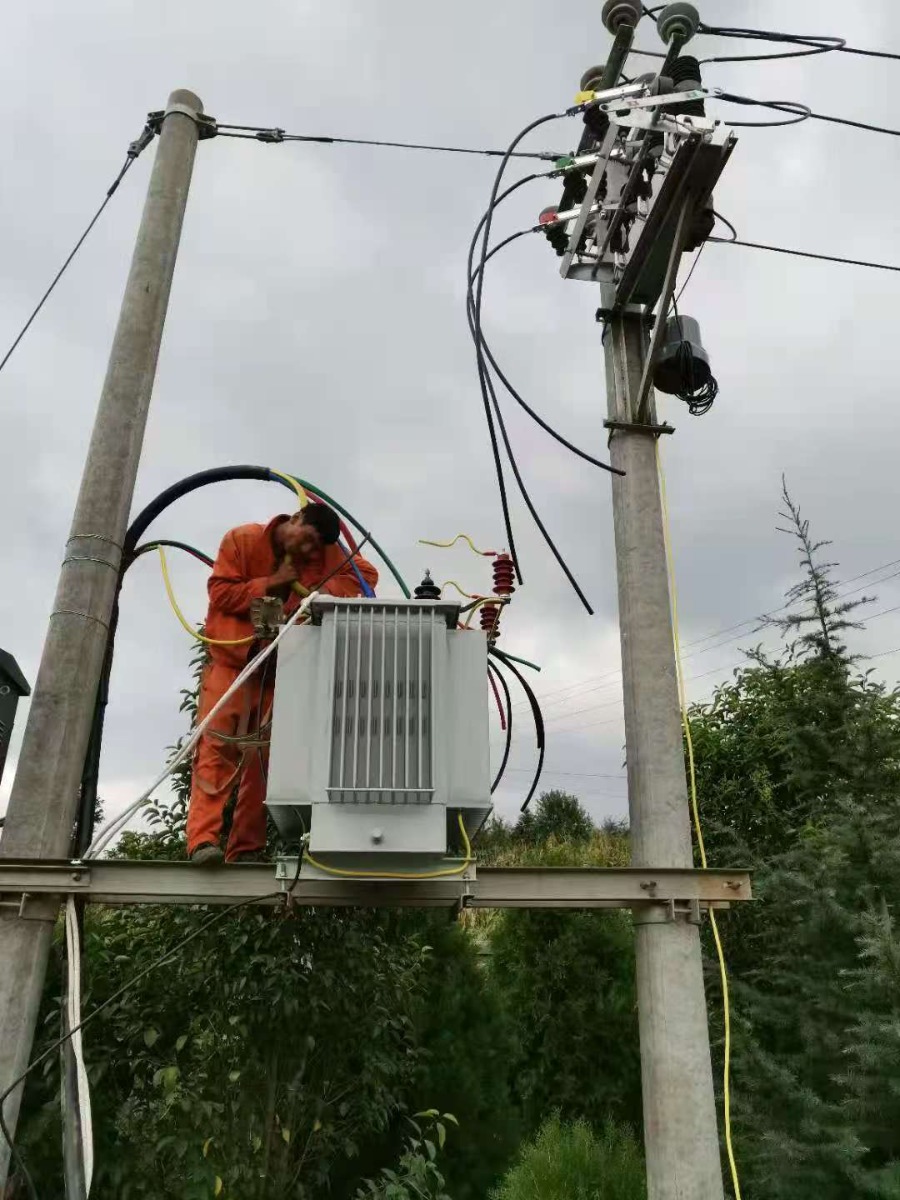

ZW32 vacuum circuit breaker is applied outdoors and is generally installed at the upper end of the transformer. It belongs to the pillar type and is commonly installed on outdoor utility poles. There are also floor standing installations with enclosures, also known as column switches. Because it can cut off the circuit, it is the boundary point between high and low voltage at the upper end of the transformer, also known as the boundary switch. It has overcurrent and phase loss zero sequence protection, and plays a role in switching circuits and protecting loads such as transformers.

Applications:

The ZW32 Outdoor Vacuum Circuit Breaker is widely applied in:

Overhead medium-voltage distribution lines

Pole-mounted distribution systems

Outdoor substations and feeder protection points

Industrial power distribution networks

Renewable energy grid connection systems

Its design supports continuous outdoor operation while maintaining consistent switching performance and system protection.

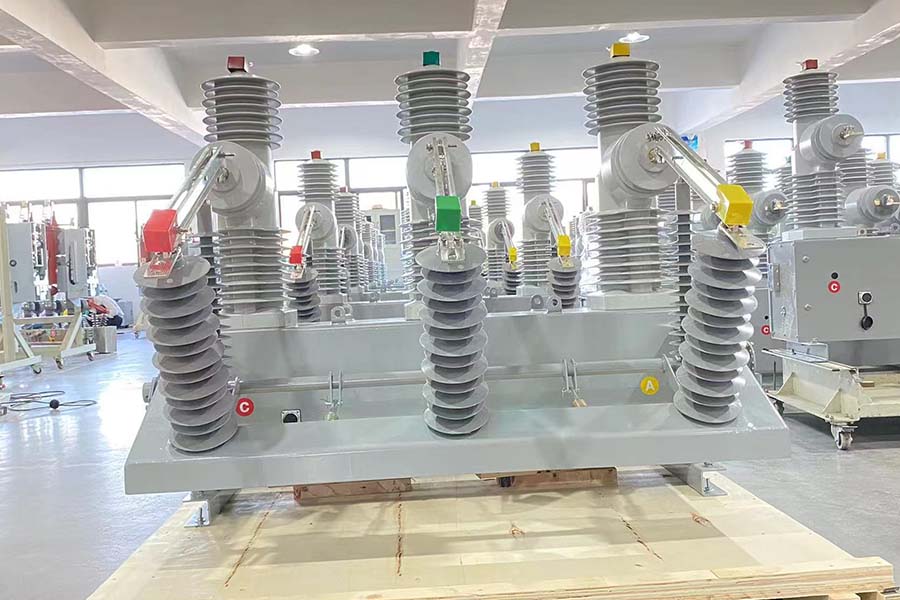

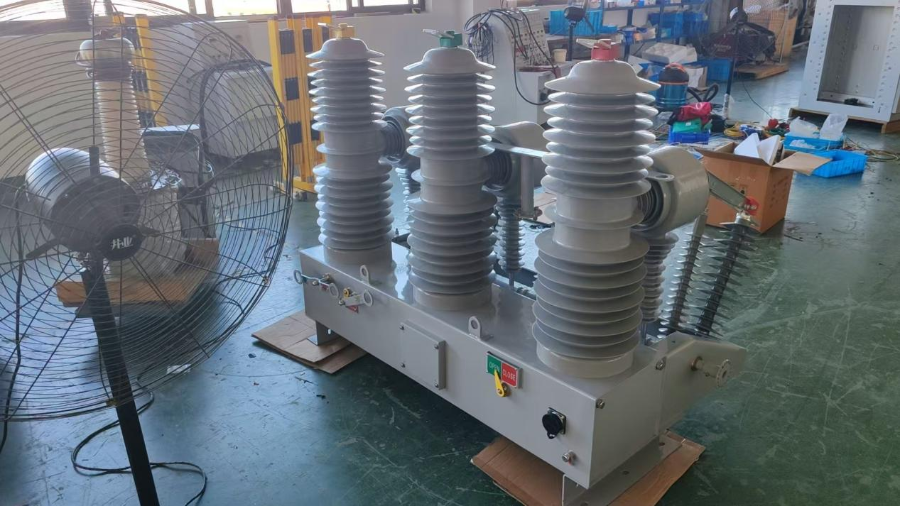

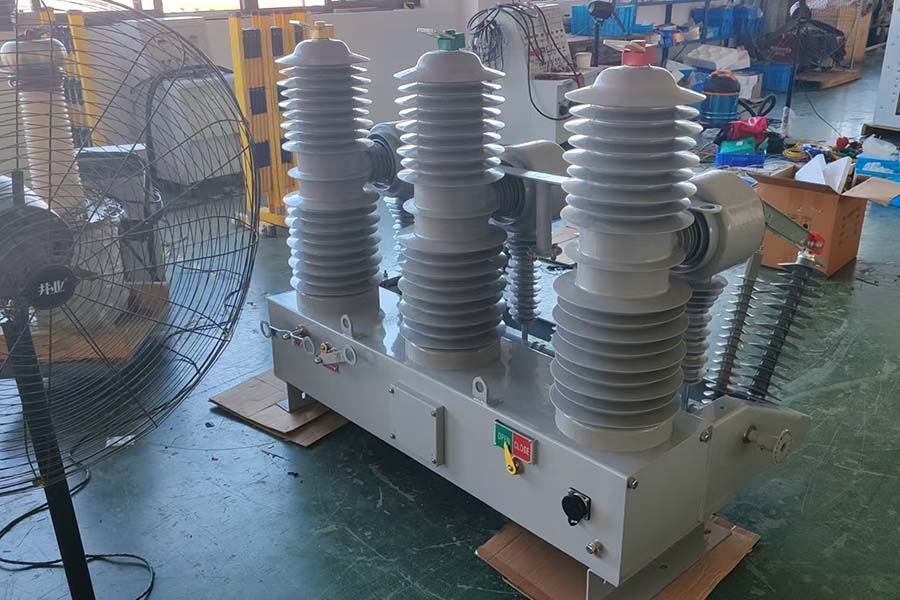

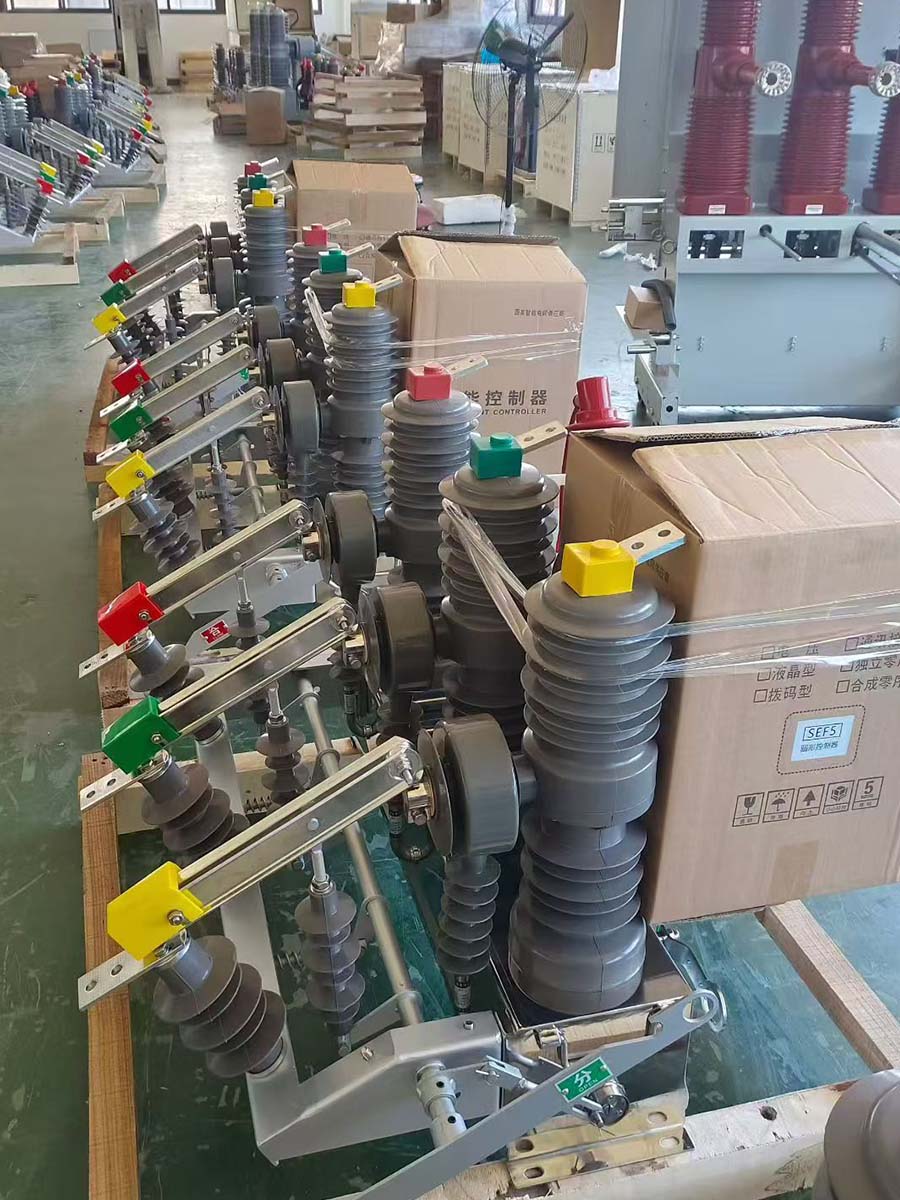

ZW32 VCB workshop
MT ELECTRICZW32
ZW32 Introduction

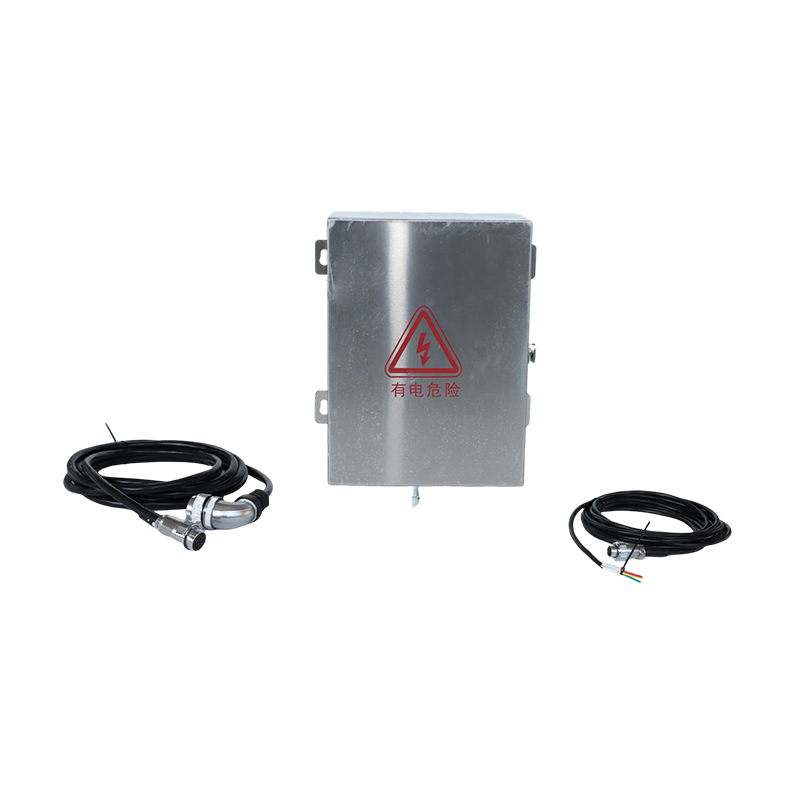

When there is overcurrent or short circuit in the outgoing line of the circuit, the current transformer can detect the current signal, which is transmitted to the controller. The controller issues a command to trip the mechanism, which drives the dynamic and static contacts inside the vacuum tube to separate, thereby achieving disconnection and cutting off the circuit, playing a protective role.

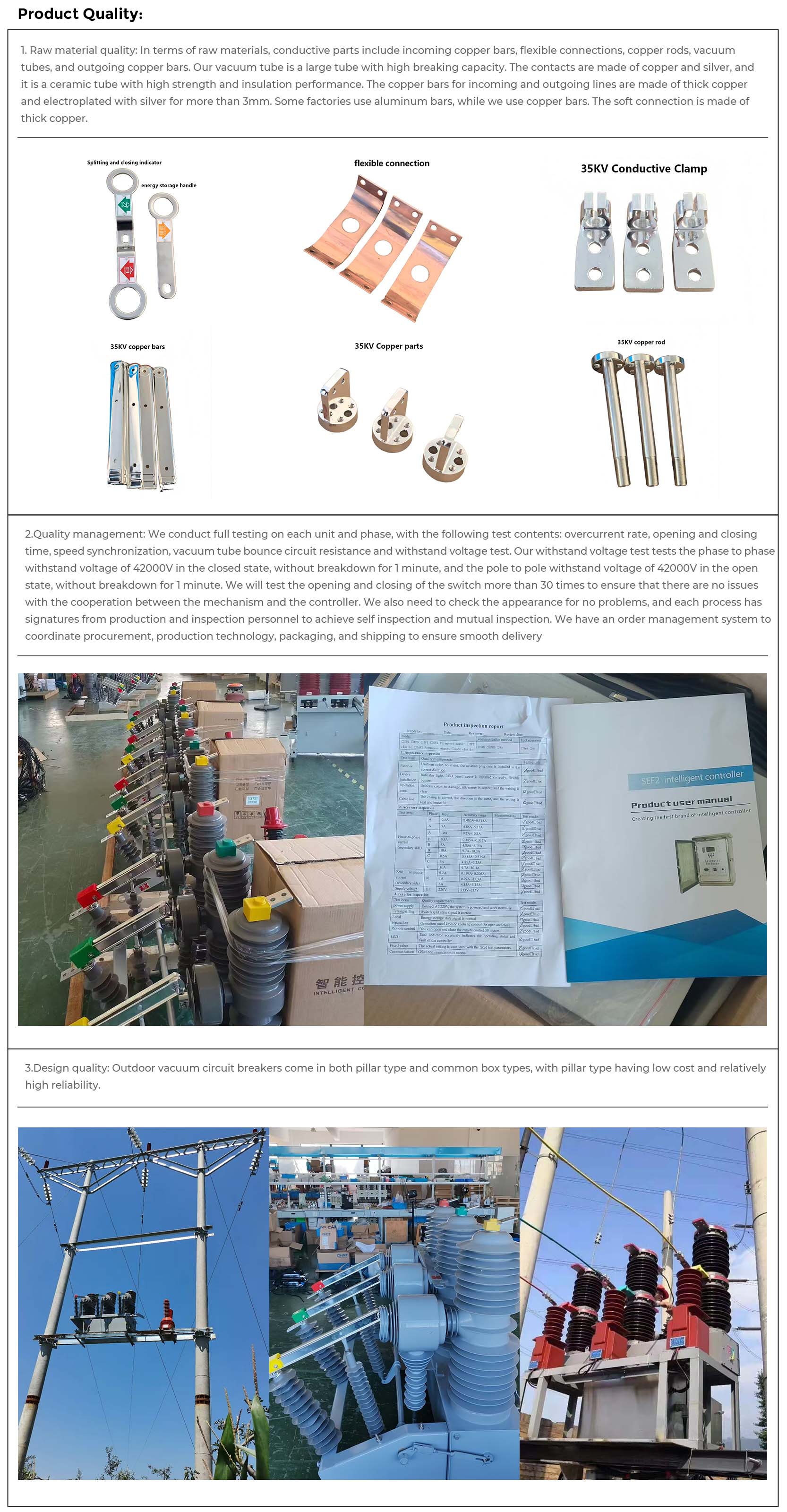

Test The Opening And Closing Of The Circuit Breaker
Secondary Wires

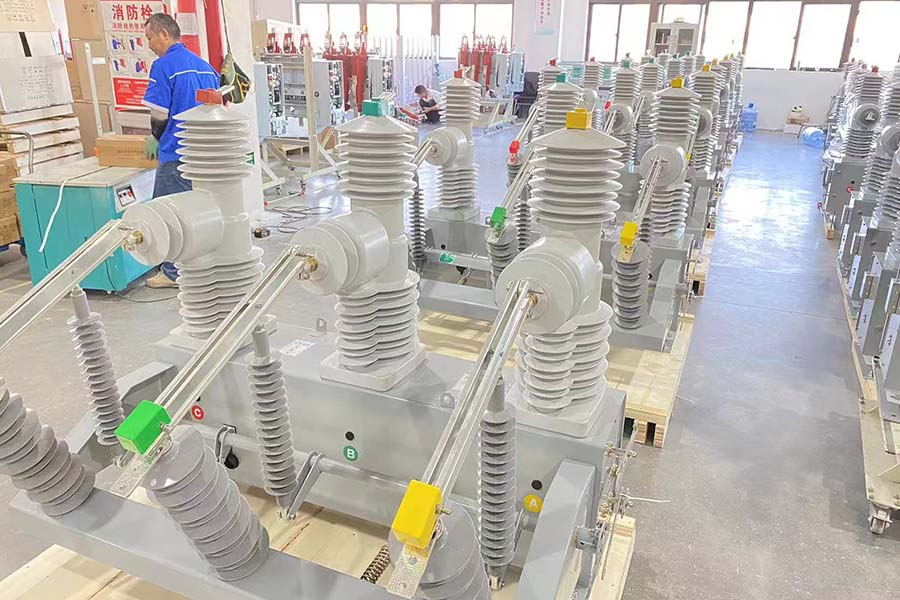

Product Debugging
Product Debugging
Product Debugging

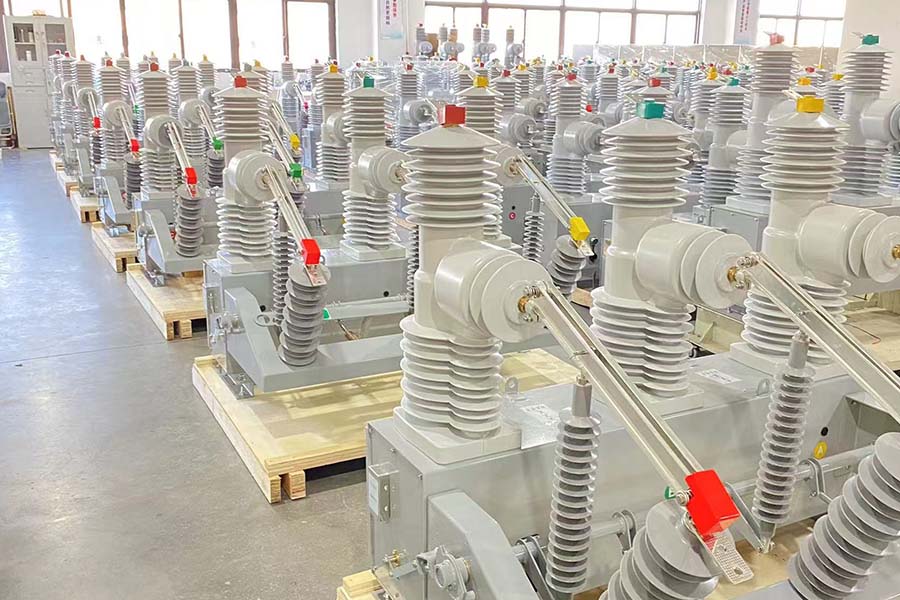

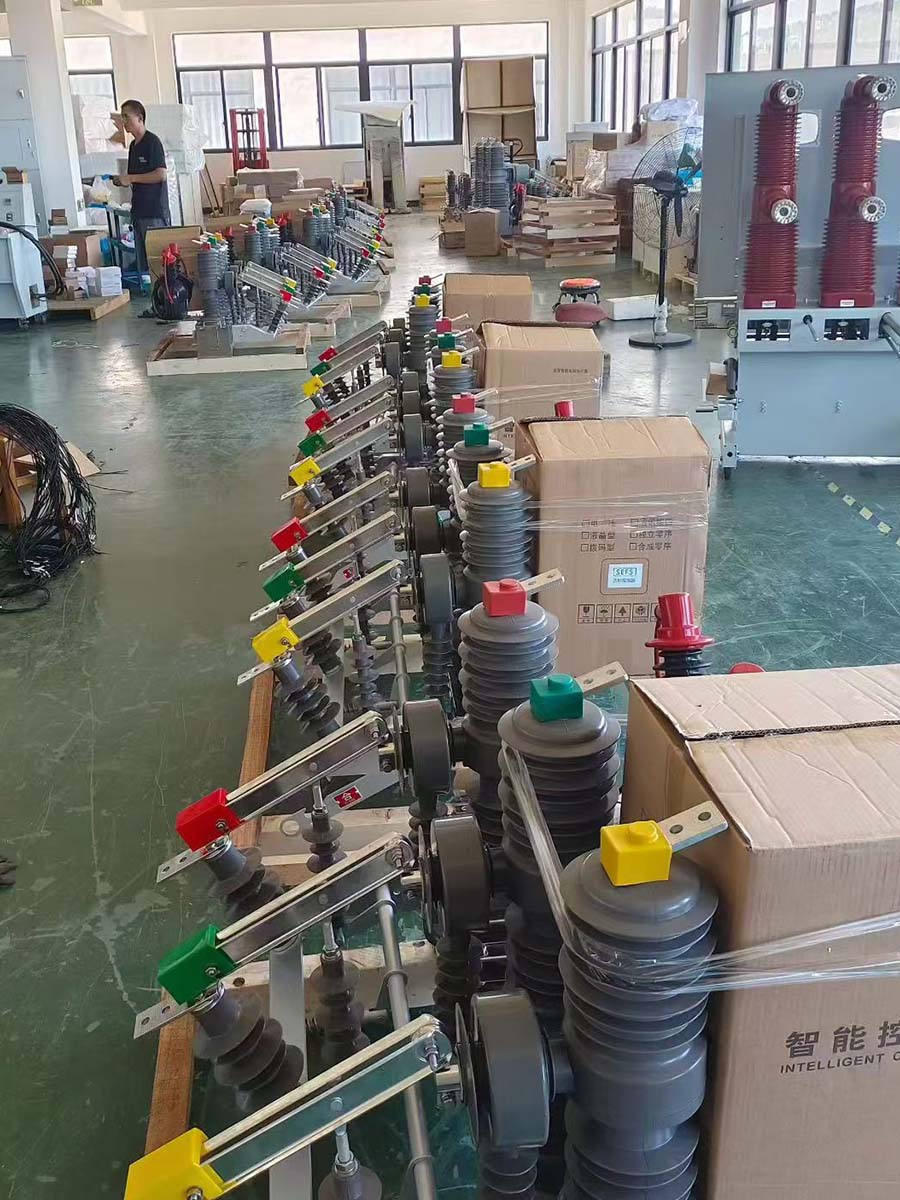

ZW32 VCB Workshop
MT Electric ZW32
ZW32 Introduction

To ensure transportation safety, our electrical products are exported in reinforced wooden crates. The crates undergo heat treatment and bear the ISPM-15 mark, enabling swift customs clearance. The raised base design facilitates forklift operation, while internal shock-absorbing fastening ensures the products arrive intact. All exterior crates are clearly labeled and comply with international logistics standards.

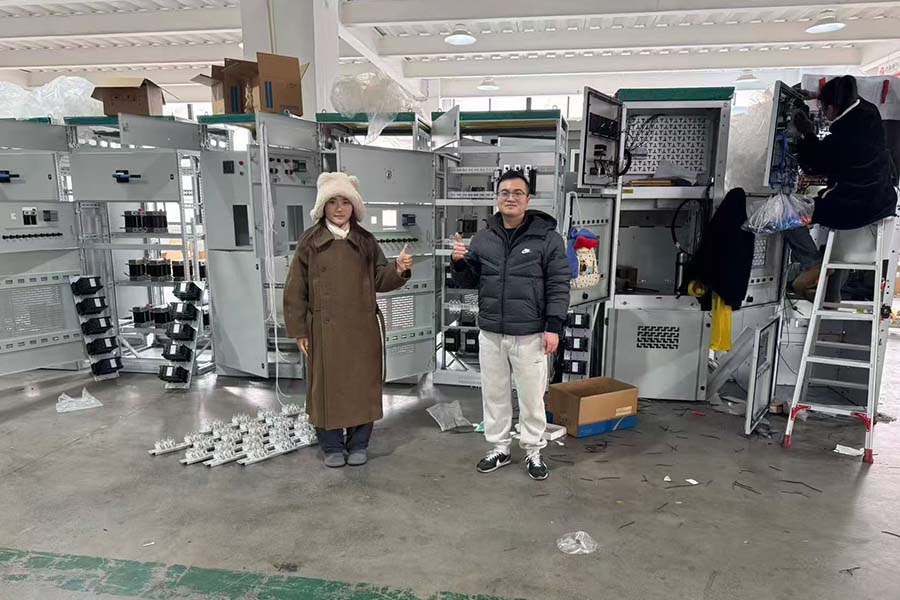

High And Low Voltage Switchgear ACB MCCB VCB
Box-Type Substation Uses Our VCB, MCCB, and ACB
High And Low Voltage Cabinets Successfully Powered

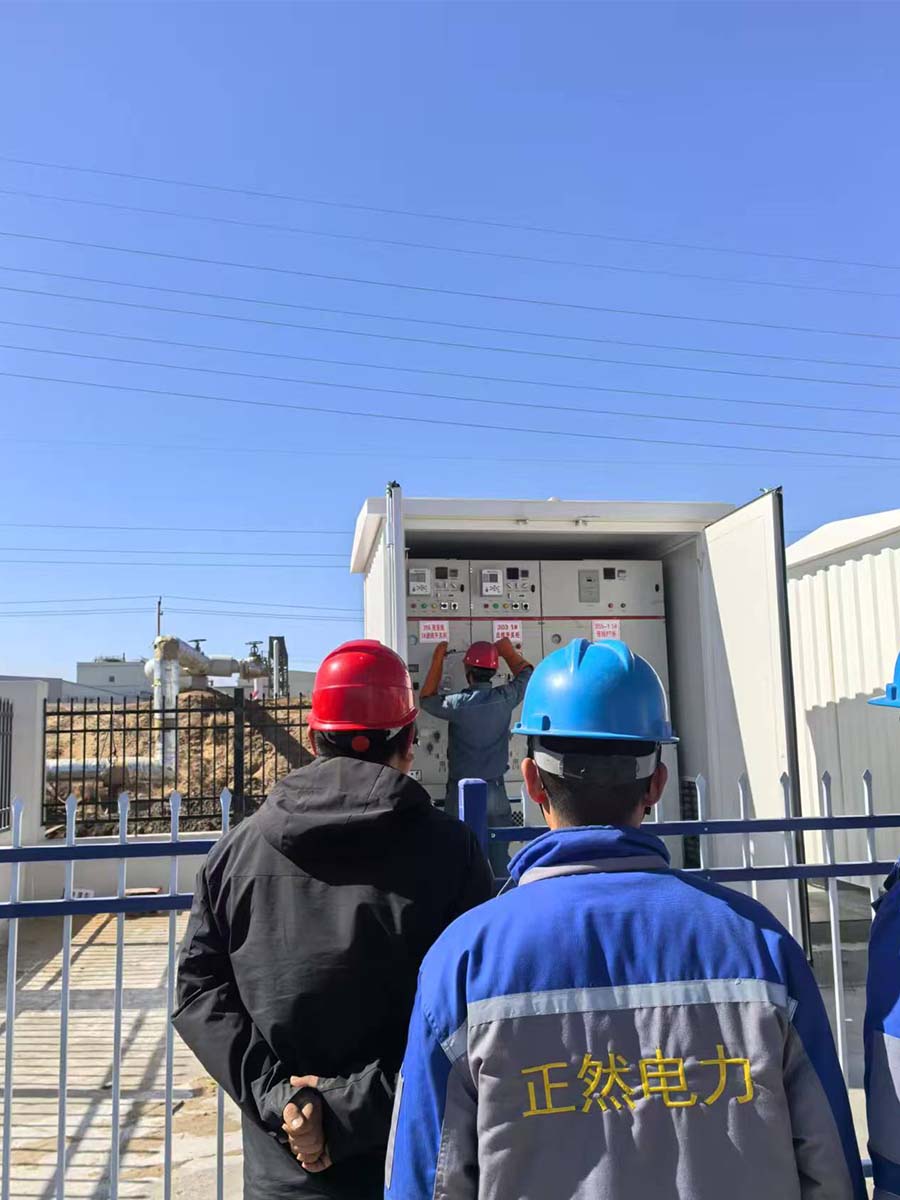

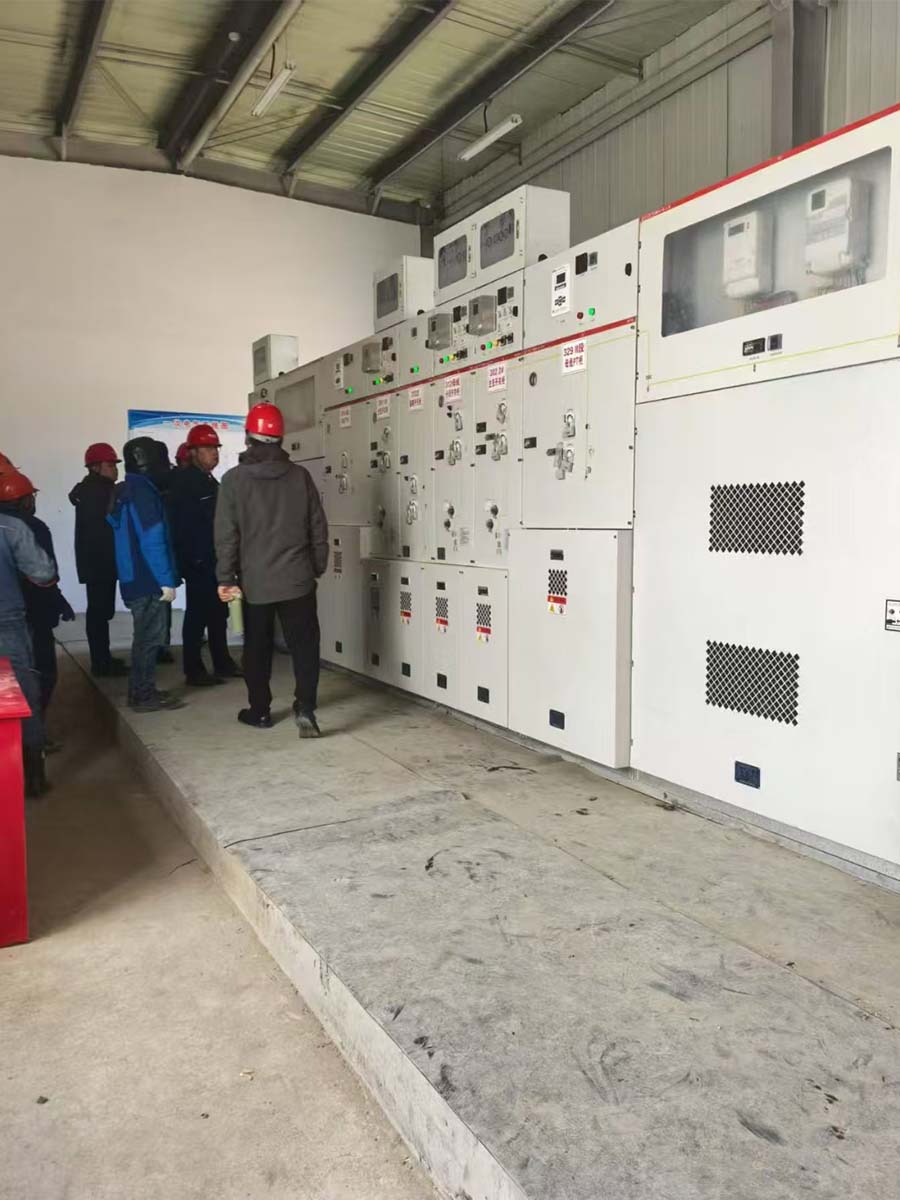

35kV gas-insulated switchgear, VCB

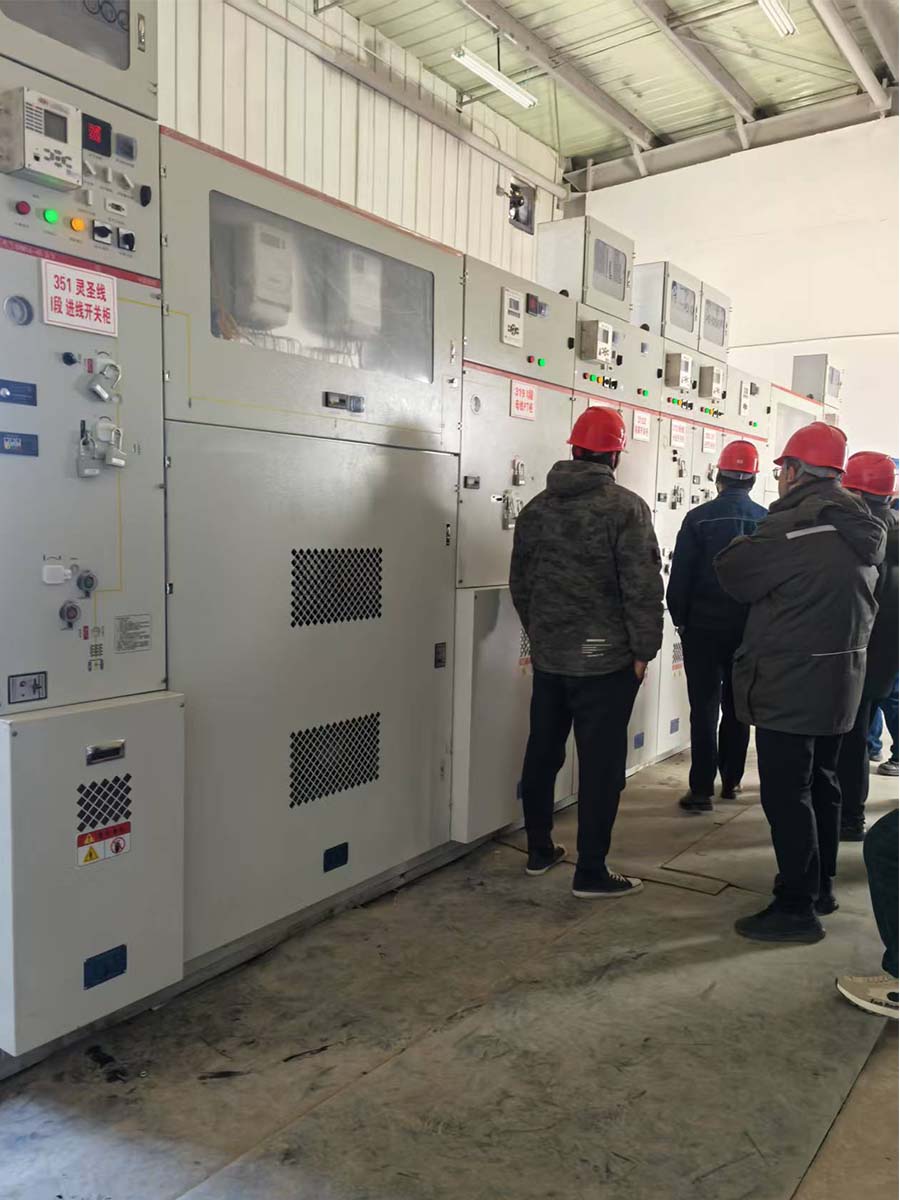

35kV gas-insulated switchgear, VCB
35kV gas-insulated switchgear, VCB

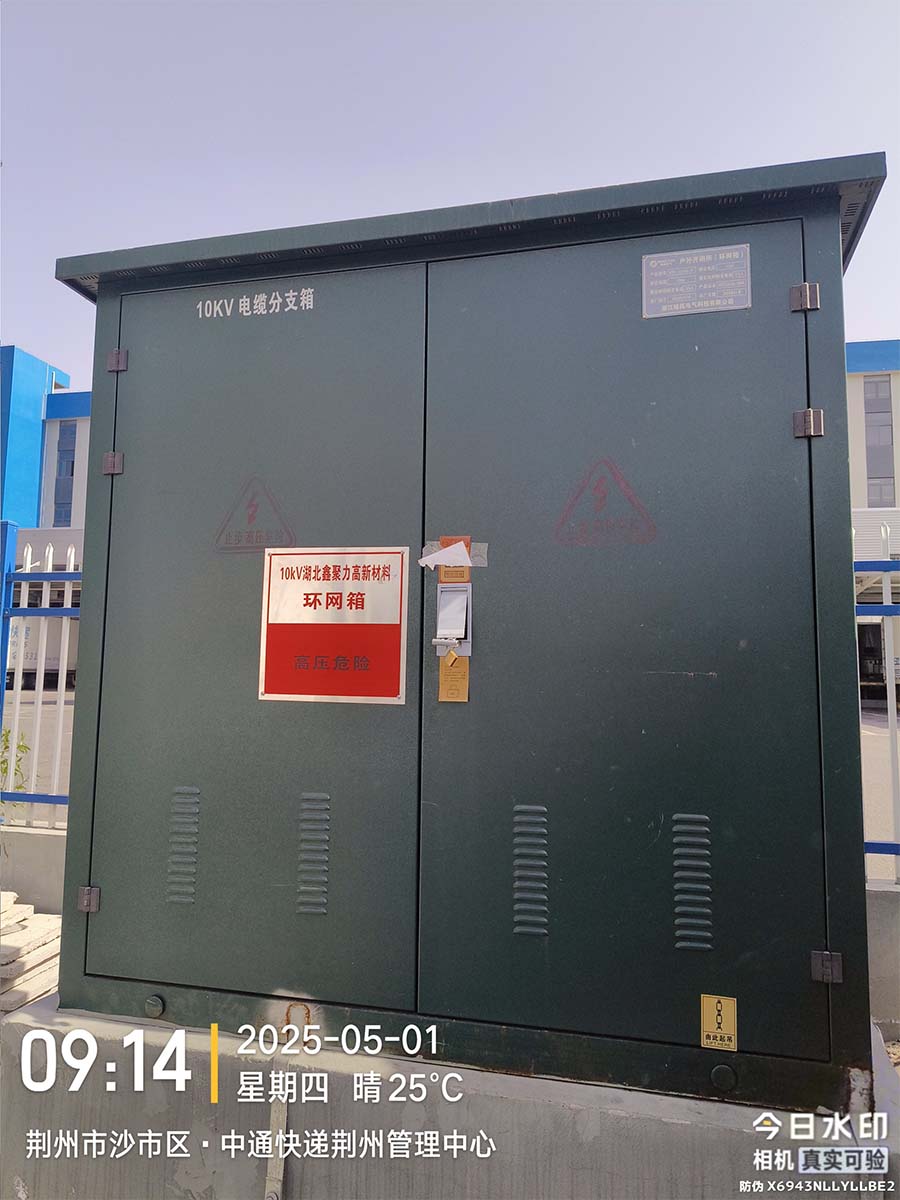

10kV ring main unit, VCB

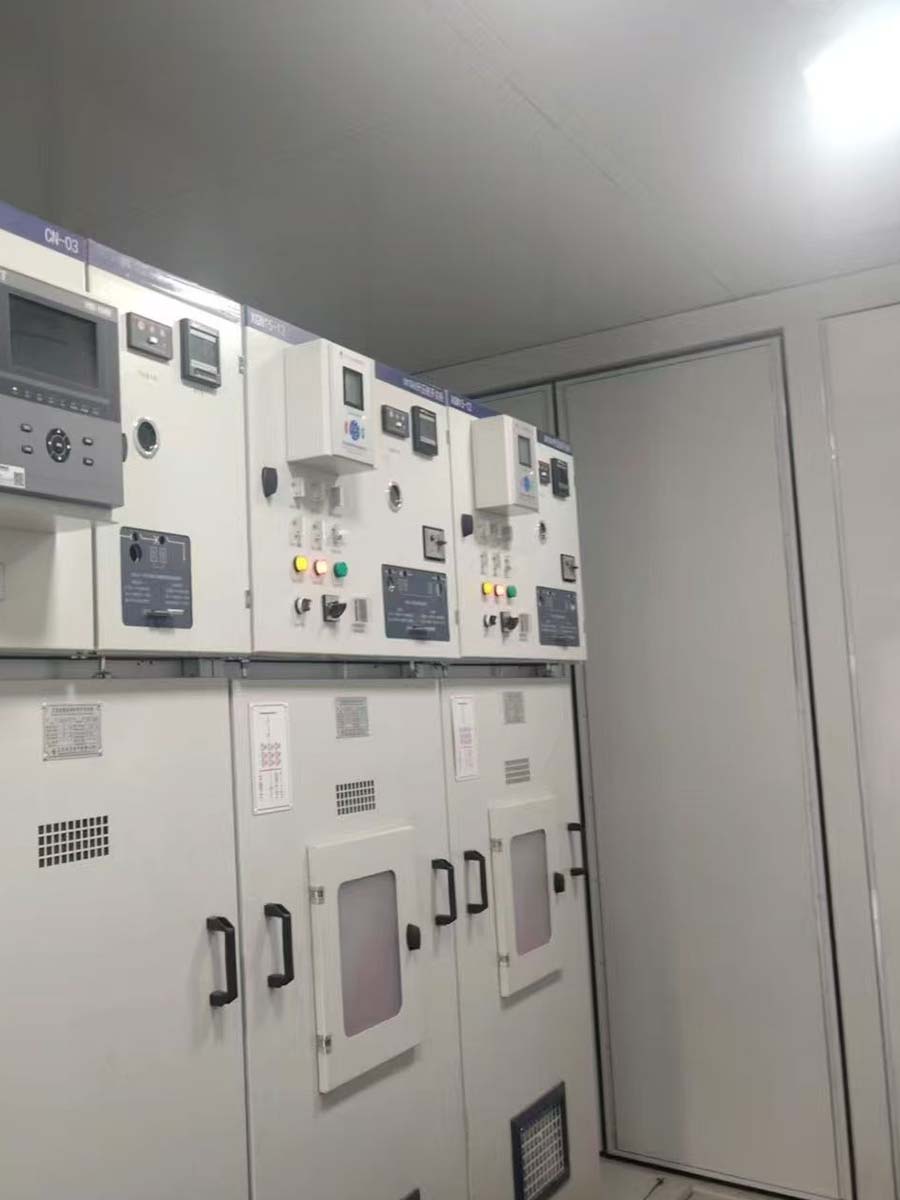

35kV high-voltage switchgear, power transmission successful
Power transmission successful
Photovoltaic Grid-Connected Cabinet Utilising ACB and MCCB
Box-typesubstation ACB VCB MCCB
Box-typesubstation ACB VCB MCCB
Box-typesubstation ACB VCB MCCB

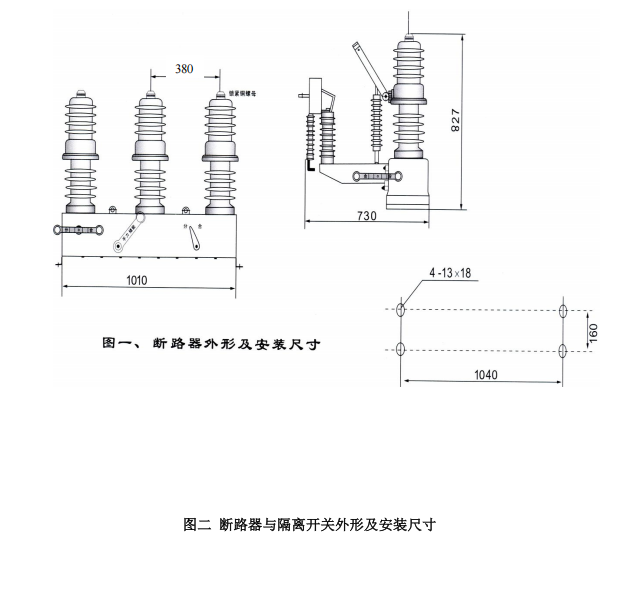

Parameter Category	Specification	Remarks
Rated Voltage	12 kV	Standard for distribution networks
Rated Current	400A, 630A, 1250A	Custom ratings available
Rated Short-Circuit Breaking Current	16 kA, 20 kA, 25 kA
Rated Short-Time Withstand Current	16 kA / 4s, 20 kA / 4s, 25 kA / 4s
Rated Peak Withstand Current	40 kA, 50 kA, 63 kA
Rated Insulation Level	Power Frequency: 42 kV (1 min) / Lightning Impulse: 75 kV
Mechanical Life	10,000 operations
Electrical Life	10,000 operations (at rated current)	Full capacity breaking
Interrupter Medium	Vacuum	Sealed ceramic bottle
Operating Mechanism	Spring	Manual or motorized
Control Voltage	AC/DC 110V, 220V	Optional 24V, 48V
Protection Degree	IP67	Suitable for harsh environments
Dimensions (H×W×D)	880 × 560 × 680 mm	Compact design
Weight	Approx. 130 kg	Easy to install
Installation Method	Pole-Mounted	Outdoor use
Ambient Temperature	-40°C to +55°C	Wide operating range
Altitude	≤ 4000 m	High-altitude version available
