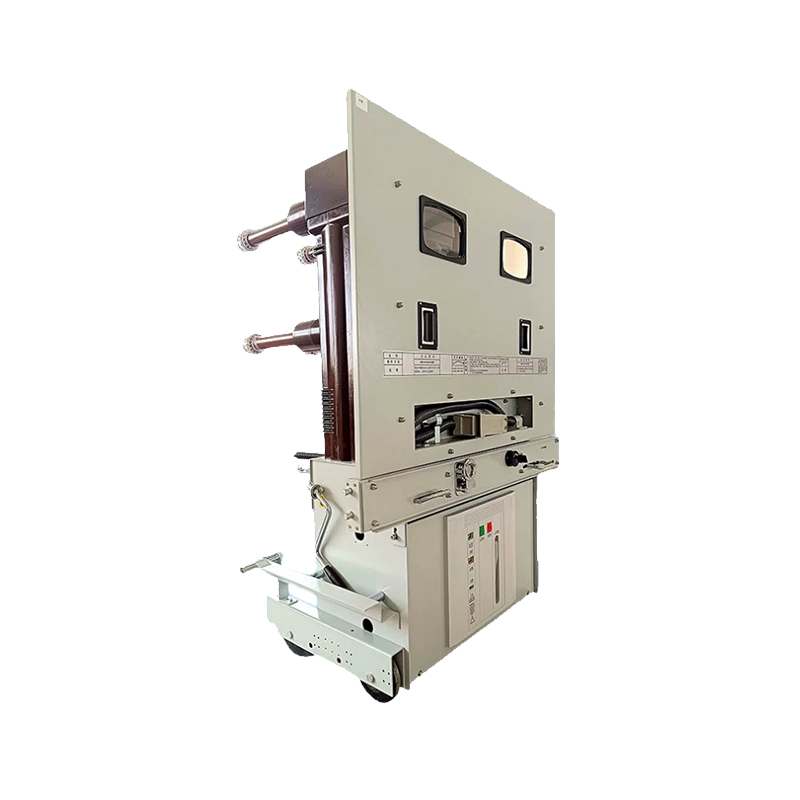

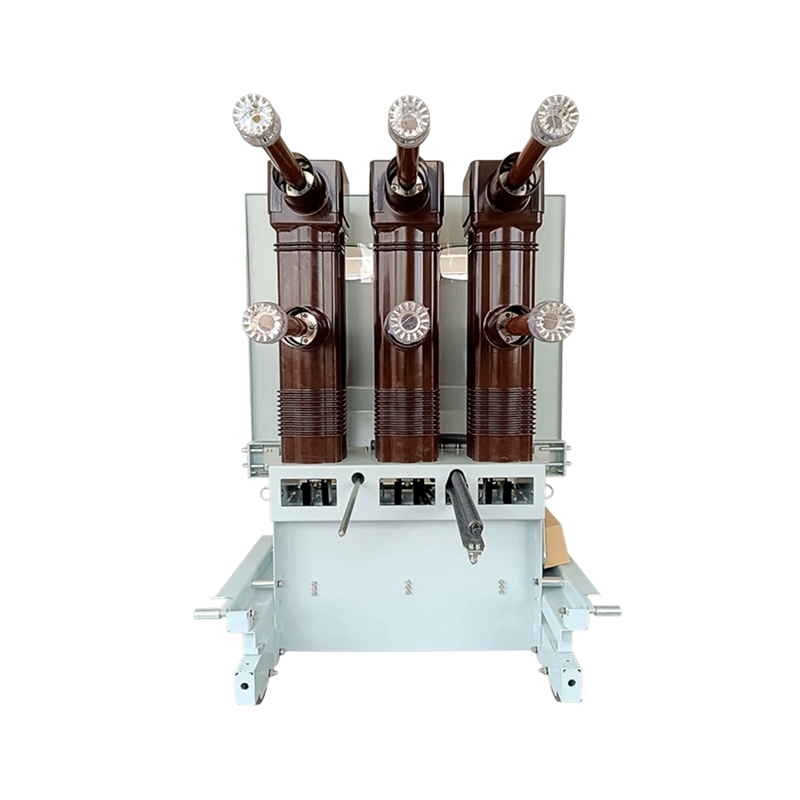

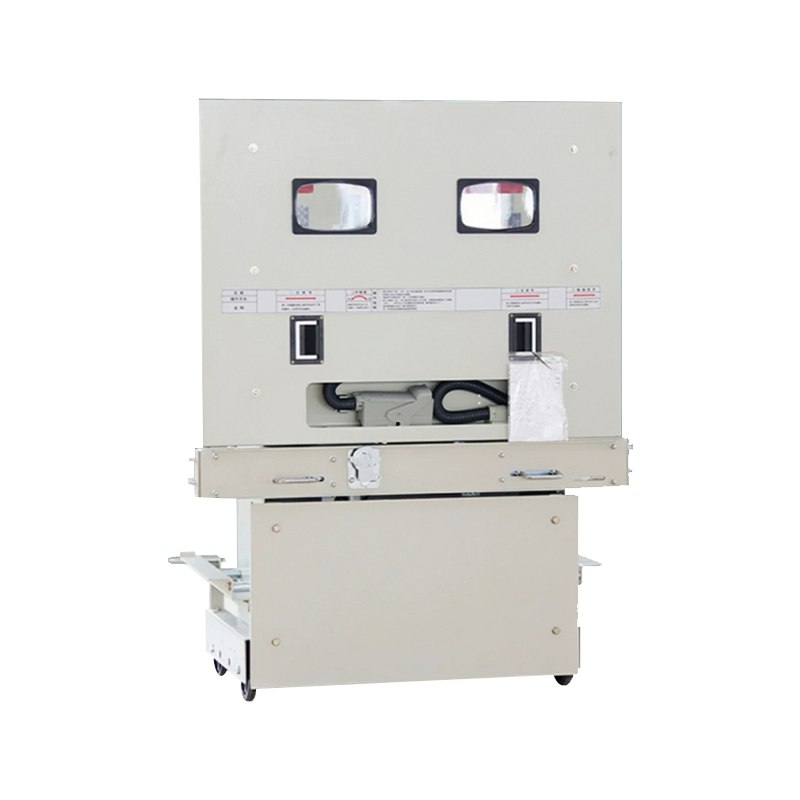

ZN85 12kV Outdoor Vacuum Circuit Breaker, 630A, Pole-Mounted

Description:

The MINGTUO ZN85 12kV Outdoor Vacuum Circuit Breaker (VCB) is a high-performance switching device designed for medium-voltage distribution networks. Rated at 630A with a breaking capacity of up to 25kA, this breaker is engineered for pole-mounted or ground-mounted applications, ensuring reliable protection in industrial, utility, and renewable energy systems. Its robust construction and advanced vacuum interruption technology enable safe, fast, and maintenance-free operation in harsh outdoor environments.

Applications:

Air Circuit Breakers (ACBs) stand as the first line of defense in main power distribution and protection systems. Their vital applications span industrial facilities, expansive commercial complexes, critical data centers, and essential public infrastructure such as airports and hospitals. In these mission-critical environments, ACBs ensure system integrity, protect costly equipment from electrical faults, and guarantee continuous operational safety and reliability.

ZN85
MTELEC ZN85 VCB
VCB Composition

Working Principle: Distribution Network Protection: Pole-mounted feeder lines, rural electrification, and automatic sectionalizing of distribution circuits.

Substations: Outgoing lines, transformer protection, and bus tie breakers.

Industrial Power Systems: Factory main incoming lines, large motor protection, and industrial load circuits.

Infrastructure Projects: Renewable energy connections, railway electrification, and mining power systems.

Special Scenarios: Frequent load switching, capacitor bank control, and safe interruption of cable charging currents.

Vacuum Interruption Technology: Hermetically sealed interrupters provide high dielectric strength, arc extinction, and consistent performance over extended service life.

Mechanical Operation: Spring-operated mechanism allows both manual and remote operation, enabling rapid contact separation during overloads or short circuits.

Environmental Protection: IP54-rated casing with corrosion-resistant materials ensures durability in extreme weather conditions, including high humidity, wind, and dust.

Compact and Modular Layout: Simplifies installation, inspection, and maintenance while integrating essential auxiliary equipment, such as current transformers and protective relays.

High reliability with a mechanical endurance of 10,000 operations

Advanced vacuum interrupter technology for minimal maintenance

Compact and corrosion-resistant design suitable for outdoor environments

IP54 protection ensures operation in harsh conditions

Integrated smart monitoring and remote control capabilities

Compliance with GB/T 11022 and IEC 62271 standards

Customizable configurations for specific project requirements

Running-in Test
ZN85 Installing

To ensure transportation safety, our electrical products are exported in reinforced wooden crates. The crates undergo heat treatment and bear the ISPM-15 mark, enabling swift customs clearance. The raised base design facilitates forklift operation, while internal shock-absorbing fastening ensures the products arrive intact. All exterior crates are clearly labeled and comply with international logistics standards.

High and Low Voltage Switchgear (ACB, MCCB, VCB)
Box-Type Substation Featuring Our VCB, MCCB, and ACB
High And Low Voltage Cabinets Successfully Powered

Box-typesubstation ACB VCB MCCB
Power transmission successful
Box-typesubstation ACB VCB MCCB
Box-typesubstation ACB VCB MCCB
Photovoltaic Grid-Connected Cabinet Utilising ACB and MCCB
Application Scenario Footage
35kV high-voltage switchgear, power transmission successful
10kV ring main unit, VCB
35kV gas-insulated switchgear, VCB
35kV gas-insulated switchgear, VCB
35kV gas-insulated switchgear, VCB

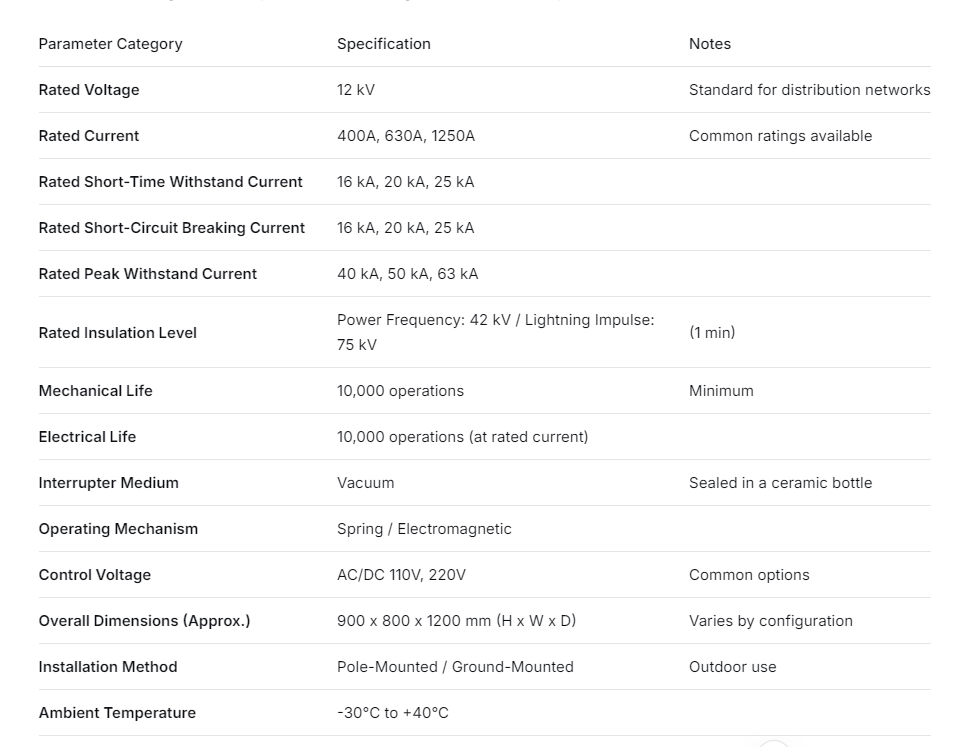

Parameter Category	Specification	Notes
Rated Voltage	12 kV	Standard for distribution networks
Rated Current	400A, 630A, 1250A	Common ratings available
Rated Short-Time Withstand Current	16 kA, 20 kA, 25 kA
Rated Short-Circuit Breaking Current	16 kA, 20 kA, 25 kA
Rated Peak Withstand Current	40 kA, 50 kA, 63 kA
Rated Insulation Level	Power Frequency: 42 kV / Lightning Impulse: 75 kV	(1 min)
Mechanical Life	10,000 operations	Minimum
Electrical Life	10,000 operations (at rated current)
Interrupter Medium	Vacuum	Sealed in a ceramic bottle
Operating Mechanism	Spring / Electromagnetic
Control Voltage	AC/DC 110V, 220V	Common options
Overall Dimensions (Approx.)	900 x 800 x 1200 mm (H x W x D)	Varies by configuration
Installation Method	Pole-Mounted / Ground-Mounted	Outdoor use
Ambient Temperature	-30°C to +40°C
