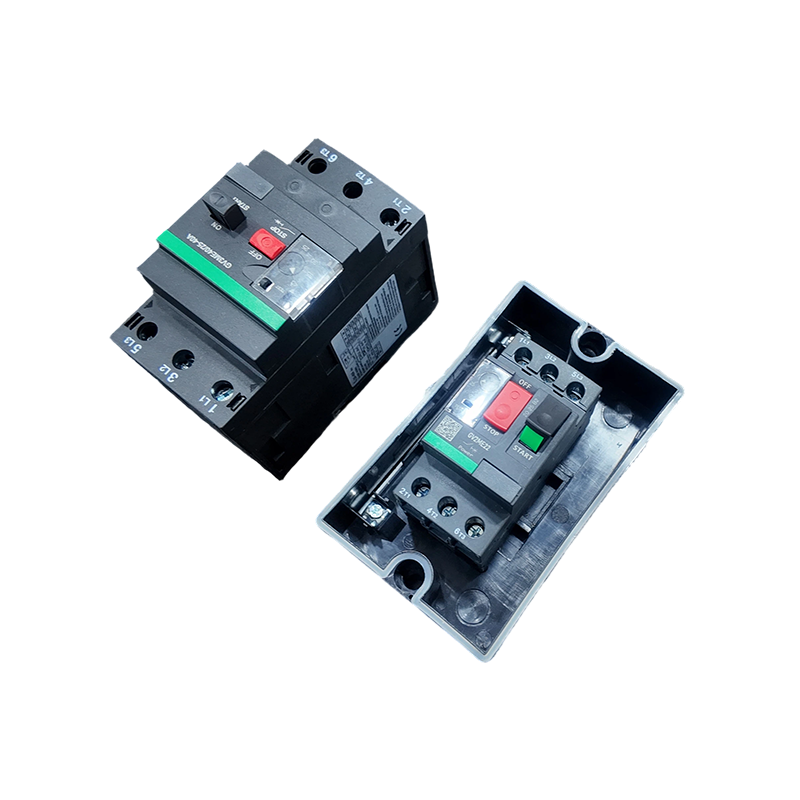

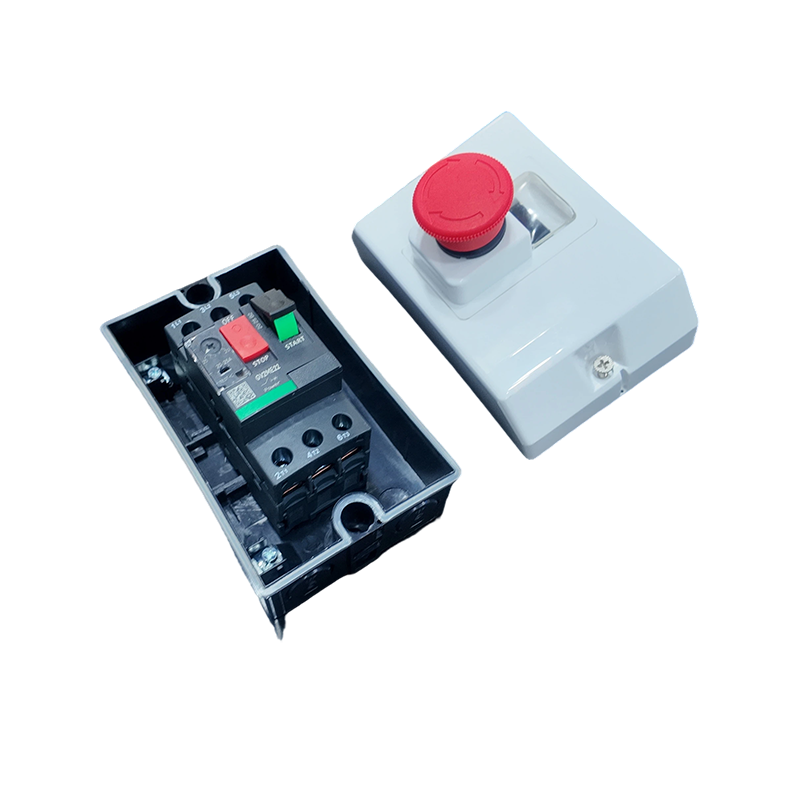

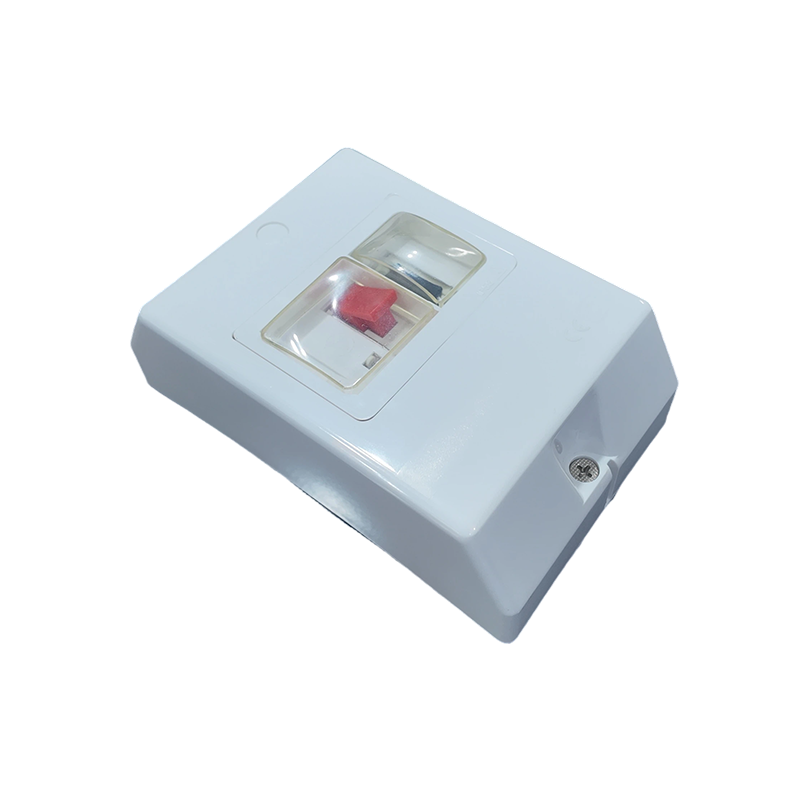

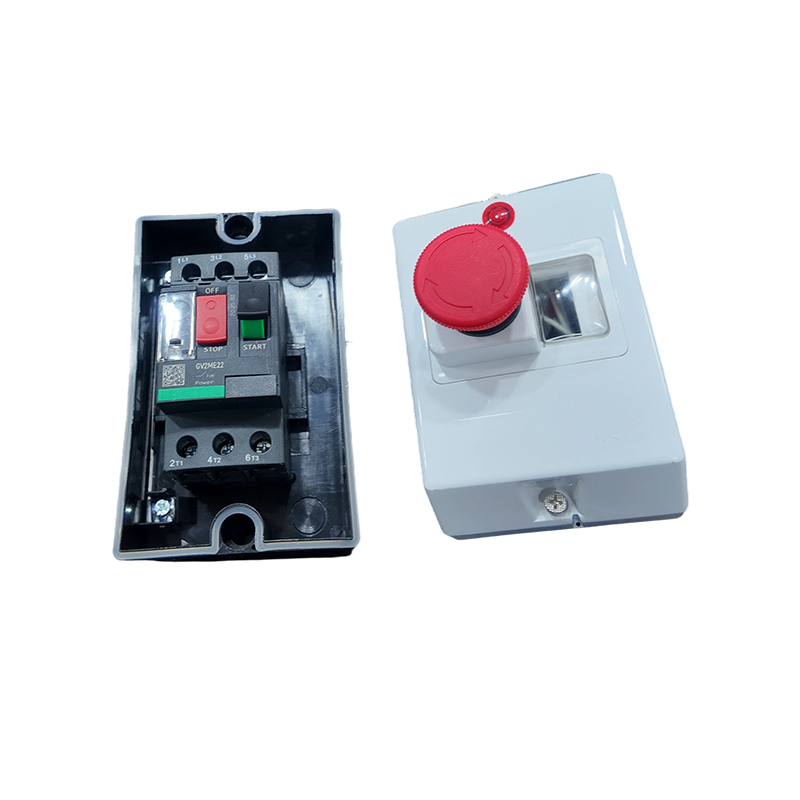

Wholesale Waterproof Box For Motor Circuit Breaker-Outdoor
Home / Products / Molded Case Circuit Breakers / GV2 Motor Protection MCCB / Waterproof Box For Motor Circuit Breaker-Outdoor
Motor circuit breaker has overload and short circuit protection function. Overload is achieved by heating and bending the bimetallic strip, tripping the top trip mechanism, and realizing line protection. Compared with thermal magnetic molded case circuit breakers, it has higher accuracy, smaller current, and more accurate protection. Practical motor protection. Short circuit protection is achieved by generating a Lorentz magnetic force through a coil, and the iron core is driven by the magnetic force to trigger a tripping mechanism, which opens the circuit breaker, disconnects the circuit, and protects the motor. It is generally used for high current protection during motor start-up.
Product Accessories
00019
00028
00037
00064
00075
00083
000010
00042
00051
| 1.We have button styles as well as knob styles | |
 |
|
| 2. We have silver contact points and copper pieces made of purple copper, and each one is debugged for reliable quality | |
 |
|
| 3. We have various styles of accessories for assembly, including auxiliary and undervoltage components | |
|
|
-
Transient test
-
Steady-state test
-
Steady-state test
-
Steady-state test
-
Temperature rise test
To ensure transportation safety, our electrical products are exported in reinforced wooden crates. The crates undergo heat treatment and bear the ISPM-15 mark, enabling swift customs clearance. The raised base design facilitates forklift operation, while internal shock-absorbing fastening ensures the products arrive intact. All exterior crates are clearly labeled and comply with international logistics standards.
-
Power transmission successful
-
Photovoltaic Grid-Connected Cabinet Utilising ACB and MCCB
-
Box-typesubstation ACB VCB MCCB
-
Box-typesubstation ACB VCB MCCB
-
Box-typesubstation ACB VCB MCCB
-
Box-typesubstationUtilisingourVCB
-
HighandLowVoltageSwitchgearACBMCCBVCB
 |
Product Model | Current Range | Three-phase motor |
| GV2-ME01C | 0.1–0.16A | - | |
| GV2-ME02C | 0.16–0.25A | - | |
| GV2-ME03C | 0.25–0.4A | - | |
| GV2-ME04C | 0.4–0.63A | - | |
| GV2-ME05C | 0.63–1A | - | |
| GV2-ME06C | 1–1.6A | 0.37KW | |
| GV2-ME07C | 1.6–2.5A | 0.75KW | |
| GV2-ME08C | 2.5–4A | 1.5KW | |
| GV2-ME10C | 4–6.3A | 2.2KW | |
| GV2-ME14C | 6–10A | 4KW | |
| GV2-ME16C | 9–14A | 5.5KW | |
| GV2-ME20C | 13–18A | 7.5KW | |
| GV2-ME21C | 17–23A | 11KW | |
| GV2-ME22C | 20–25A | 11KW | |
| GV2-ME32C | 24–32A | 15KW |
| Model | Current Range | Trip Current | Supporting Attochments |
| GV2-ME01C | 0.1A~0.16A | 1.5A |
Side Mounted Contoct: GV-AE1
|
| GV2-ME02C | 0.16A~0.25A | 2.4A | |
| GV2-ME03C | 0.25A~0.4A | 5A | |
| GV2-ME04C | 0.4A~0.63A | 8A | |
| GV2-ME05C | 0.63A~1A | 13A | |
| GV2-ME06C | 1A~1.6A | 22.5A | |
| GV2-ME07C | 1.6A~2.5A | 33.5A | |
| GV2-ME08C | 2.5A~4A | 51A | |
| GV2-ME10C | 4A~6.3A | 78A | |
| GV2-ME14C | 6A~10A | 138A | |
| GV2-ME16C | 9A~14A | 170A | |
| GV2-ME20C | 13A~18A | 223A | |
| GV2-ME21C | 17A~23A | 327A | |
| GV2-ME22C | 20A~25A | 327A | |
| GV2-ME32C | 24A~32A | 416A |
GV2ME Motor Circuit Breaker With Thermal Magnetic Protection
| 50/60Hz,AC-3class Standard rated power of three-phase motor |
Hot release setting range(A) |
Magnetic tripping current Id ±20% (A) |
Ithe current with casing (A) | Model | Weight (kg) | |||
| 230V (kW) | 400V (kW) | 415V (kW) | 440V (kW) | |||||
| - | - | - | - | 0.1…0.16 | 1.5 | 0.16 | GV2ME01C | 0.26 |
| - | - | - | - | 0.16…0.25 | 2.4 | 0.25 | GV2ME02C | 0.26 |
| - | - | - | - | 0.25…0.40 | 5 | 0.4 | GV2ME03C | 0.26 |
| - | - | - | - | 0.40…0.63 | 8 | 0.63 | GV2ME04C | 0.26 |
| - | 0.37 | - | 0.37 | 0.63…1 | 13 | 1 | GV2ME05C | 0.26 |
| 0.37 | 0.37 | 0.75 | 0.55 | 1…1.6 | 22.5 | 1.6 | GV2ME06C | 0.26 |
| 0.75 | 0.75 | 0.75 | 1.1 | 1.6…2.5 | 33.5 | 2.5 | GV2ME07C | 0.26 |
| 1.1 | 1.5 | 1.5 | 1.5 | 2.5…4 | 51 | 4 | GV2ME08C | 0.26 |
| 2.2 | 2.2 | 2 | 3 | 4…6.3 | 78 | 6.3 | GV2ME10C | 0.26 |
| 2.2 | 4 | 4 | 4 | 6…10 | 138 | 9 | GV2ME14C | 0.26 |
| 3 | 5.5 | 5.5 | 7.5 | 9…14 | 170 | 13 | GV2ME16C | 0.26 |
| 4 | 7.5 | 9 | 9 | 13…18 | 223 | 17 | GV2ME20C | 0.26 |
| 5.5 | 11 | 11 | 11 | 17…23 | 327 | 21 | GV2ME21C | 0.26 |
| 5.5 | 11 | 11 | 11 | 20…25 | 327 | 23 | GV2ME22C | 0.26 |
| 7.5 | 15 | 15 | 15 | 24…32 | 416 | 24 | GV2ME32C | 0.26 |
