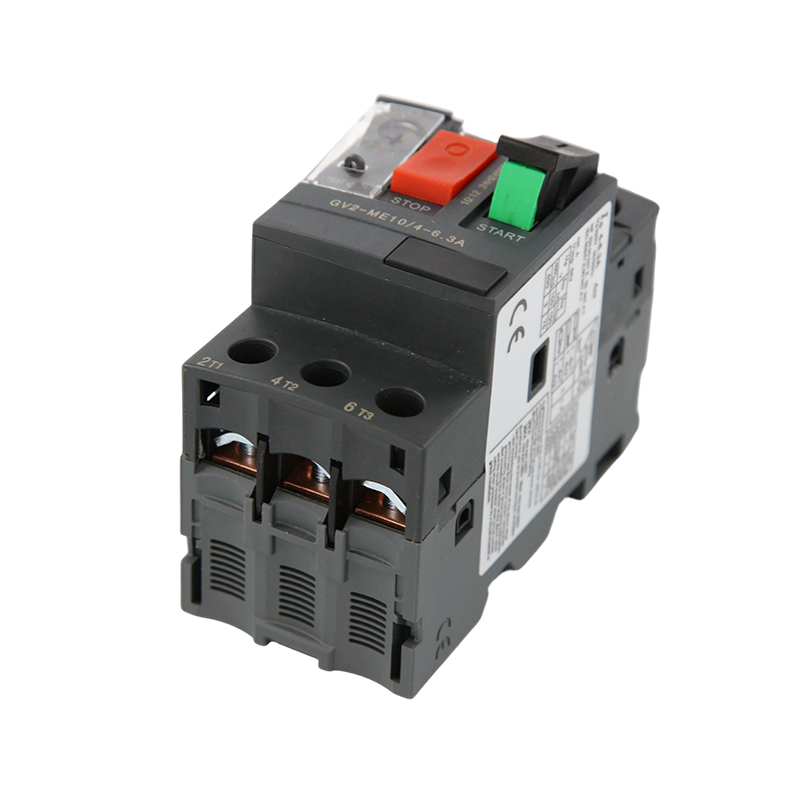

MT-GV2 Motor Protection Combo: MCCB and Thermal Overload Relay for 0.1–32A Motors

Description:

The MT-GV2 Motor Protection Combo integrates a high-performance molded case circuit breaker (MCCB) with the GV2 series motor protector, forming a comprehensive protection solution for low-voltage motor circuits. This combination safeguards motors against short circuits, overloads, and phase loss while ensuring smooth operation in industrial environments.

Constructed from durable thermosetting materials and designed for compact installation, this system is ideal for motor control centers, machinery panels, and industrial automation setups. It offers precise protection for motors ranging from 0.1A to 32A, with easy installation and intuitive operation for maintenance personnel.

Applications:

The MT-GV2 combo is widely deployed across industrial and commercial sectors to ensure continuous, reliable motor operation. Typical use cases include:

Pumps, compressors, and fans

Conveyors and material handling equipment

Machine tools and processing lines

Agricultural and food processing machinery

Renewable energy motor-driven systems

GV3 Auxiliary Side Loading

Working Principle:

Motor circuit breaker has overload and short circuit protection function. Overload is achieved by heating and bending the bimetallic strip, tripping the top trip mechanism, and realizing line protection. Compared with thermal magnetic molded case circuit breakers, it has higher accuracy, smaller current, and more accurate protection. Practical motor protection. Short circuit protection is achieved by generating a Lorentz magnetic force through a coil, and the iron core is driven by the magnetic force to trigger a tripping mechanism, which opens the circuit breaker, disconnects the circuit, and protects the motor. It is generally used for high current protection during motor start-up.

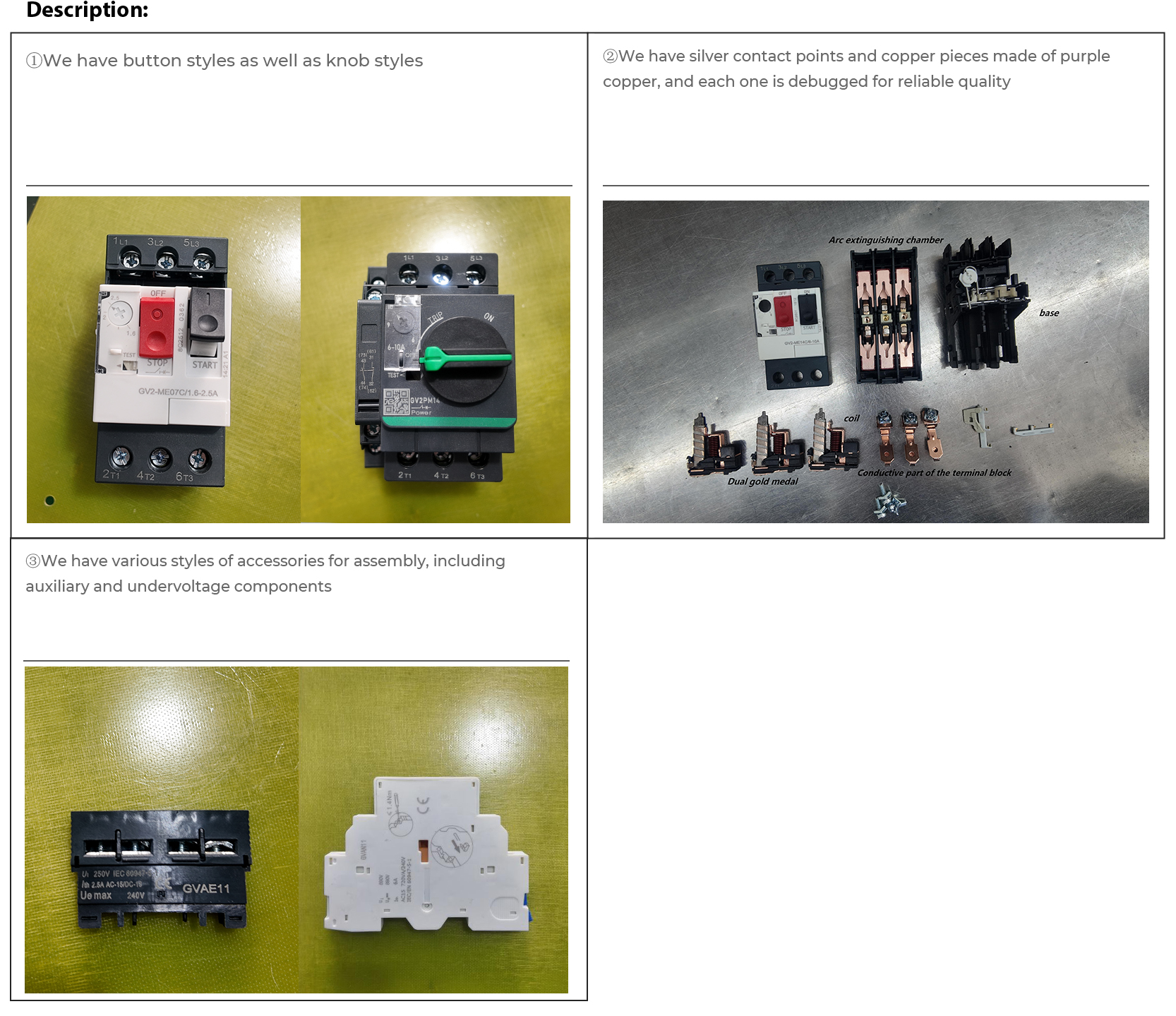

Product Accessories

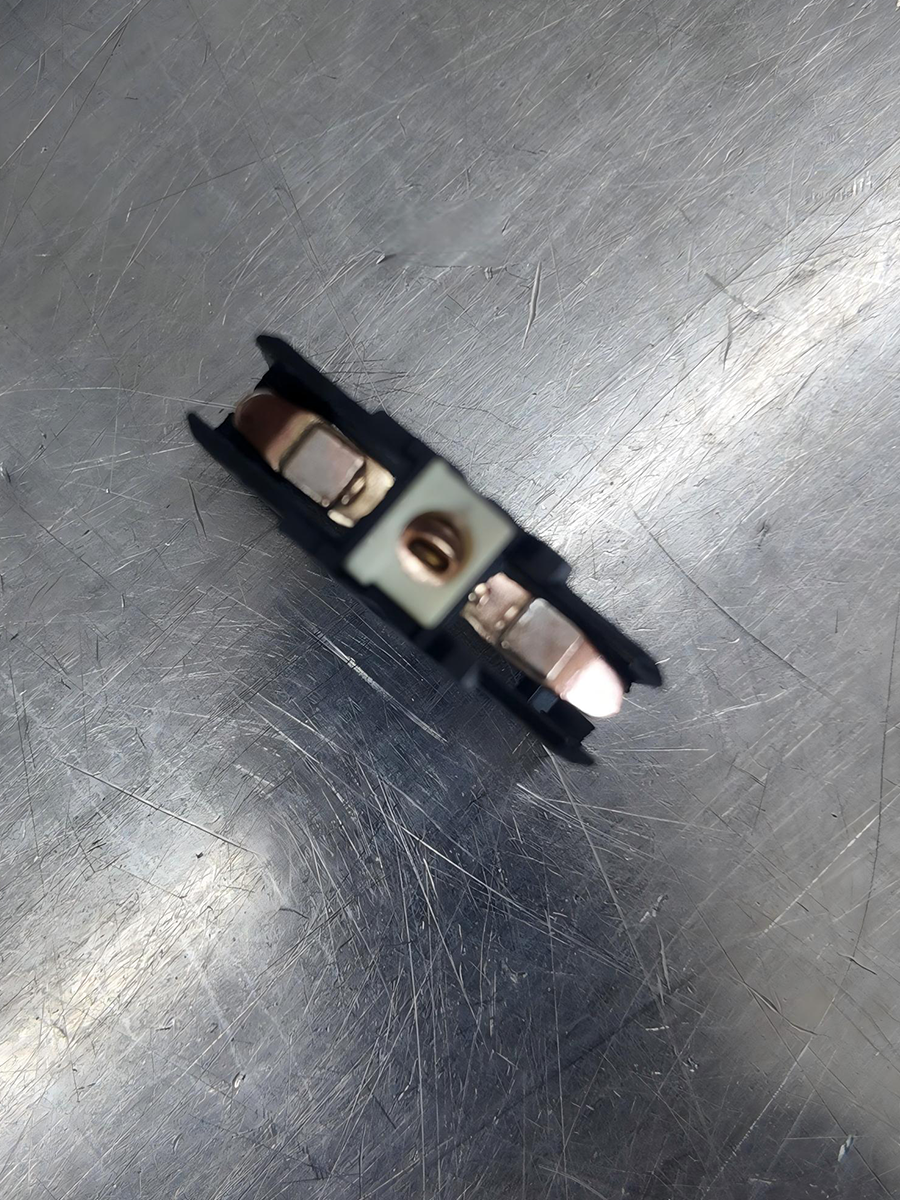

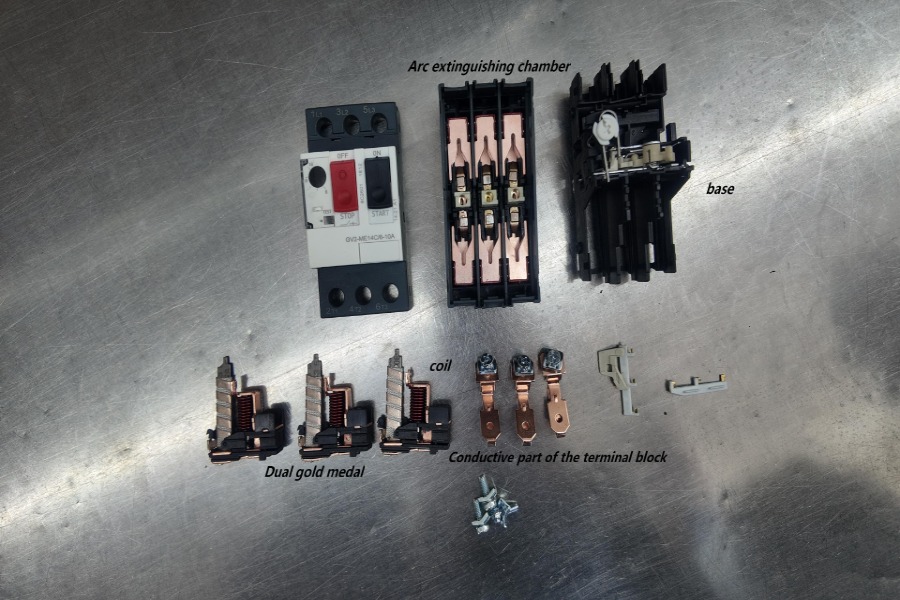

Movingcontact

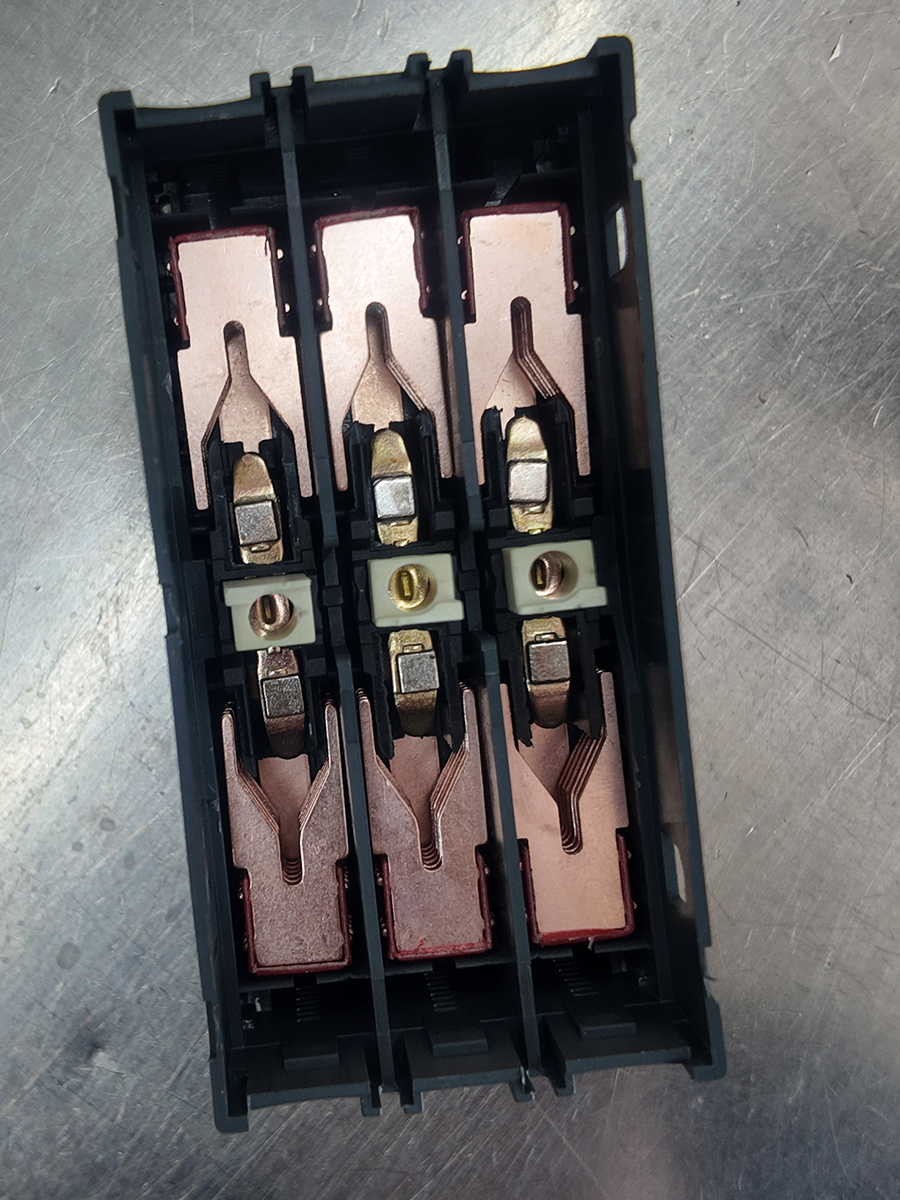

arcextinguishingchamber

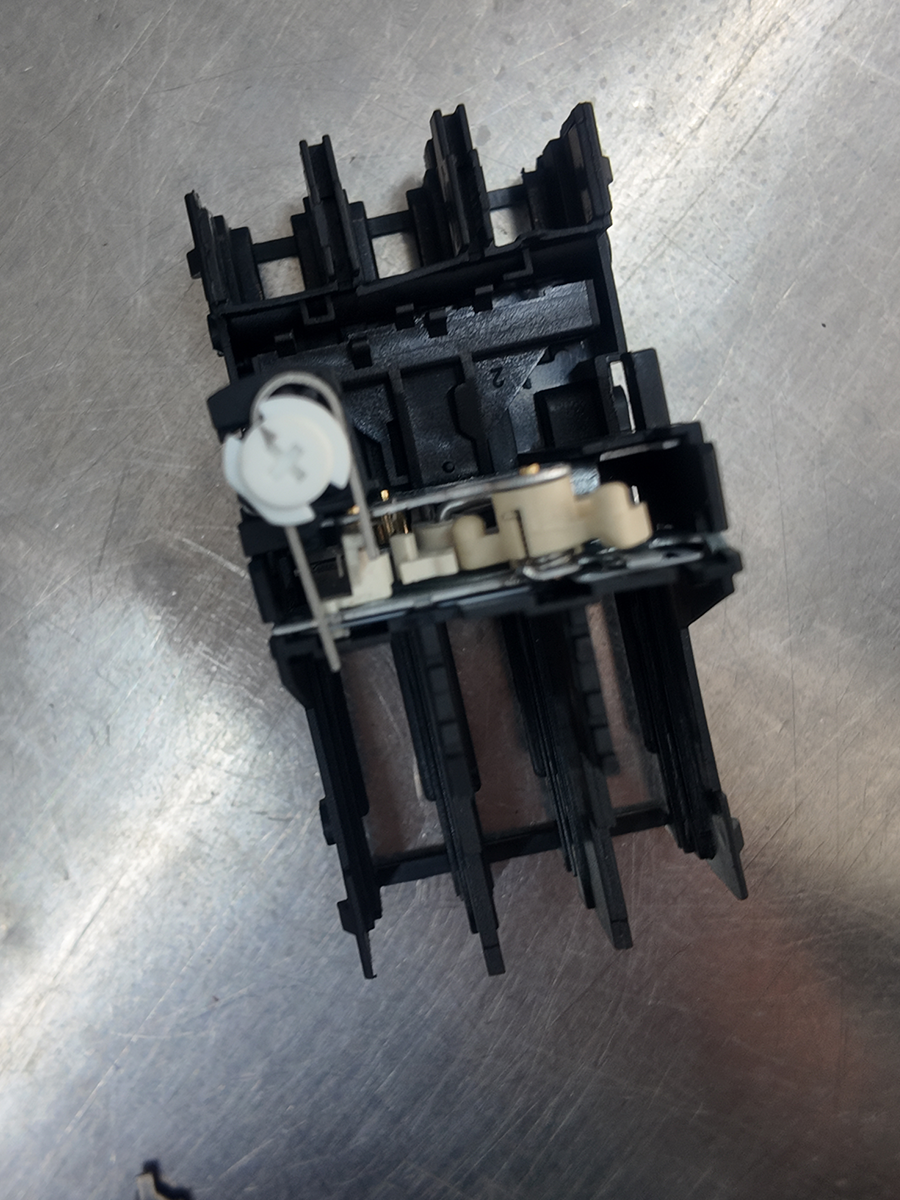

base

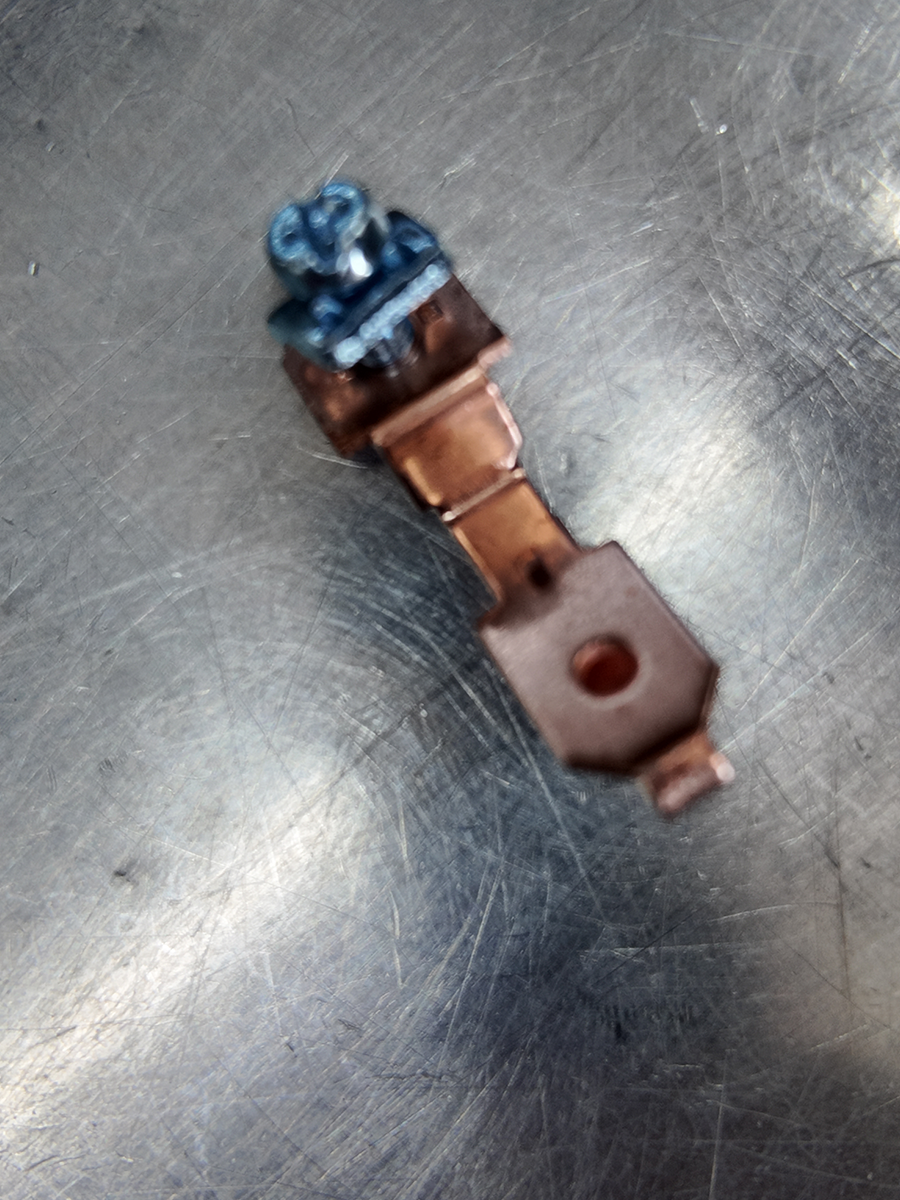

conductivpartoftheterminalblock

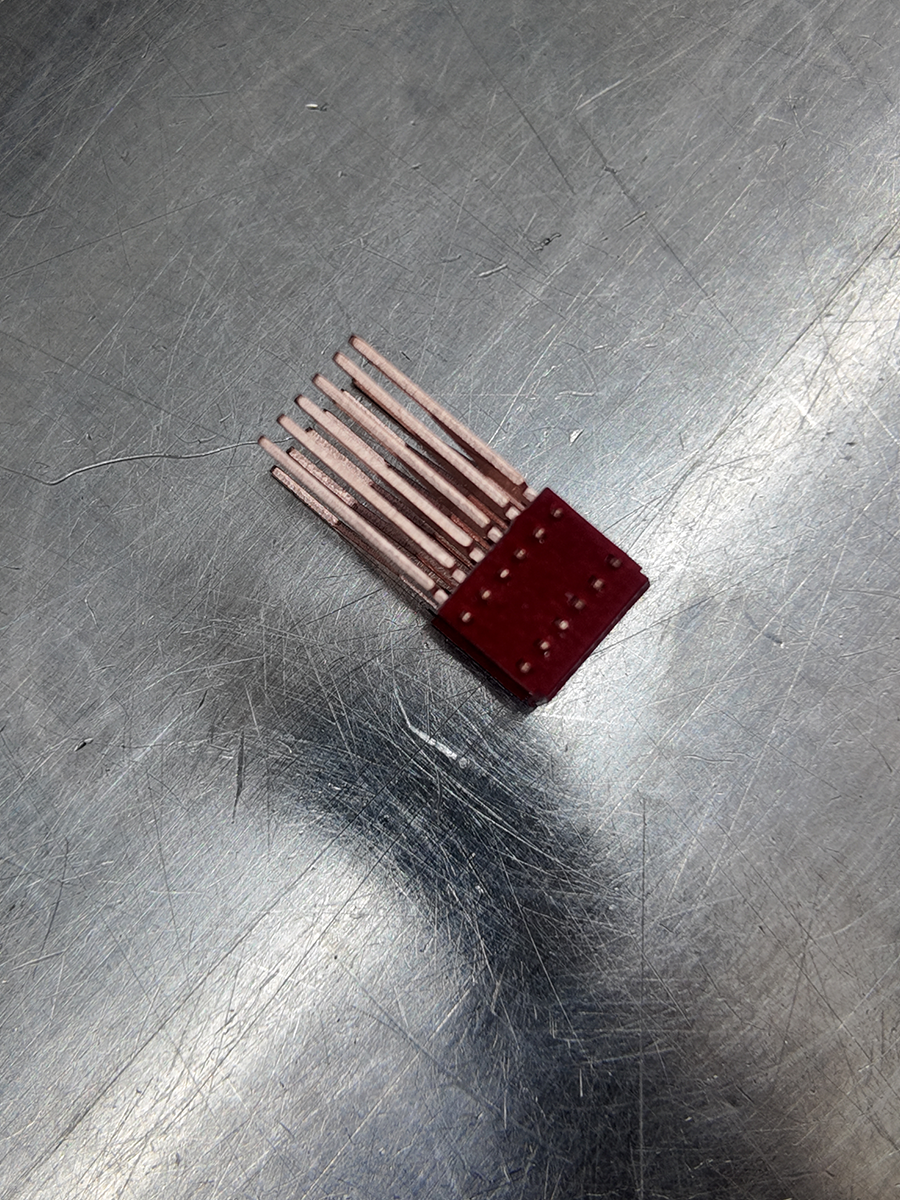

DJI_20260111145146_0084_D

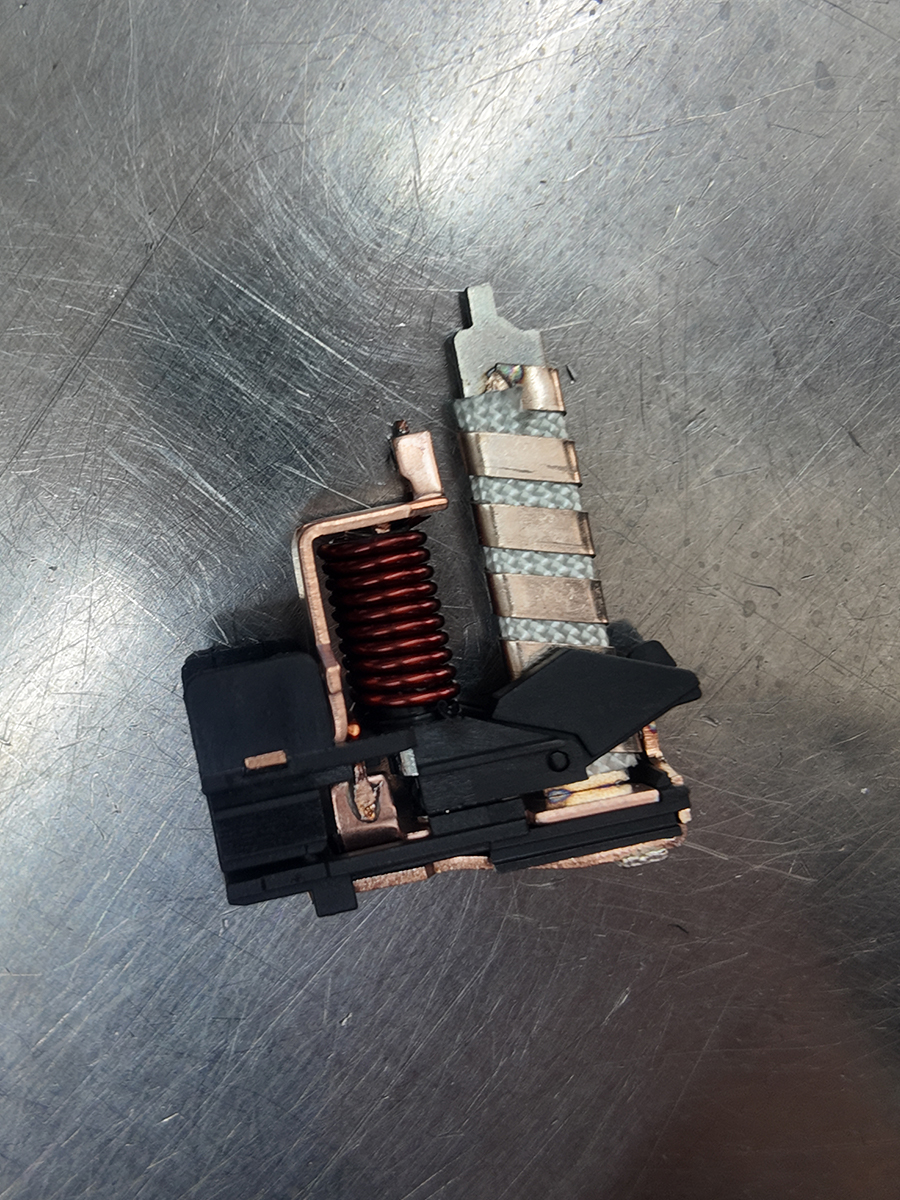

Dualgoldmedalcoil

Delay Testing

DSC01043 MCCB, Temperature rise test
MCCB Instantaneous Test
MCCB Temperature Rise Test Bench
MCCB Temperature Rise Test Bench
MCCB Temperature Rise Test Bench

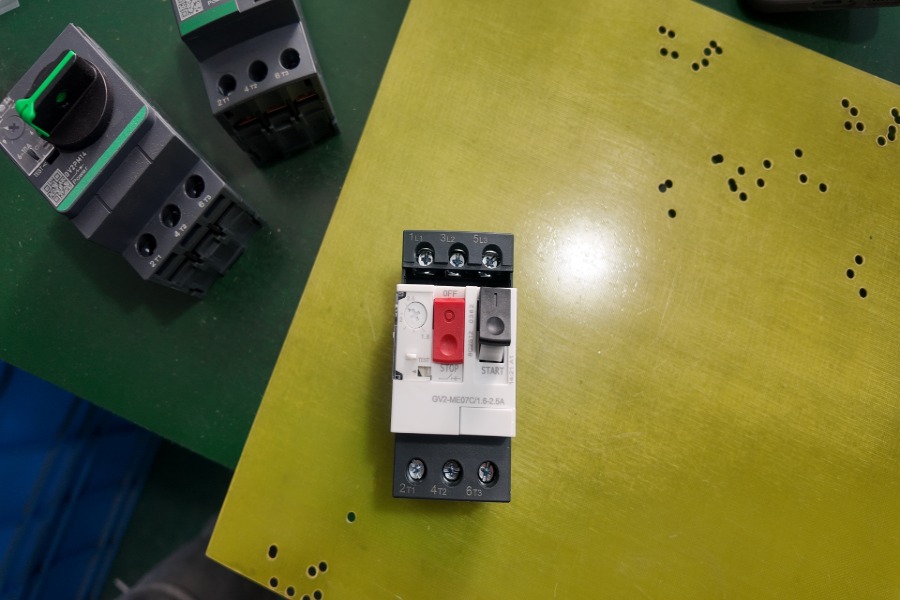

MCCB Assemble
MCCB Assemble
MCCB Temperature Rise Test Bench

To ensure transportation safety, our electrical products are exported in reinforced wooden crates. The crates undergo heat treatment and bear the ISPM-15 mark, enabling swift customs clearance. The raised base design facilitates forklift operation, while internal shock-absorbing fastening ensures the products arrive intact. All exterior crates are clearly labeled and comply with international logistics standards.

High and Low Voltage Switchgear (ACB, MCCB, VCB)

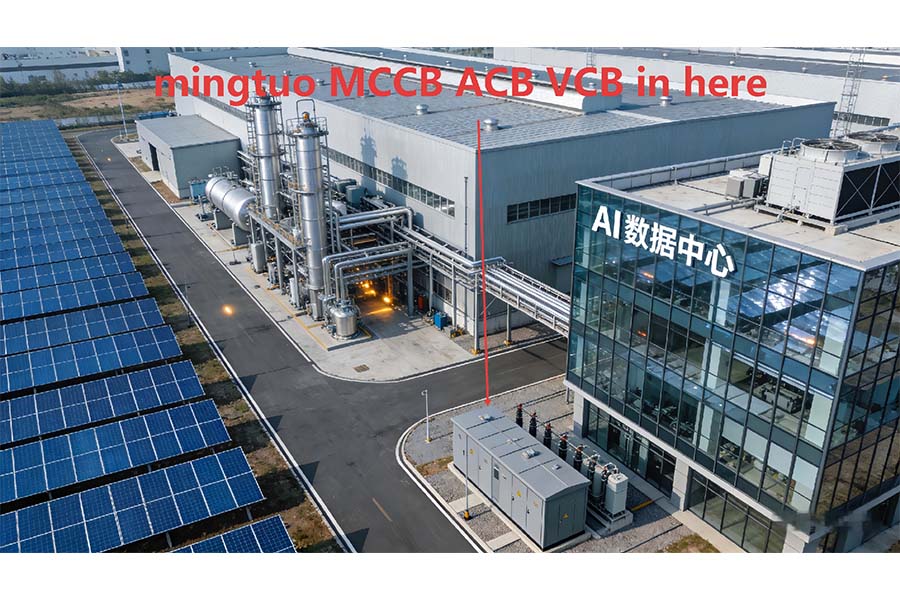

Box-Type Substation Featuring Our VCB, MCCB, and ACB
High And Low Voltage Cabinets Successfully Powered

Power transmission successful
Photovoltaic Grid-Connected Cabinet Utilising ACB and MCCB
Box-typesubstation ACB VCB MCCB
Box-typesubstation ACB VCB MCCB
Box-typesubstation ACB VCB MCCB

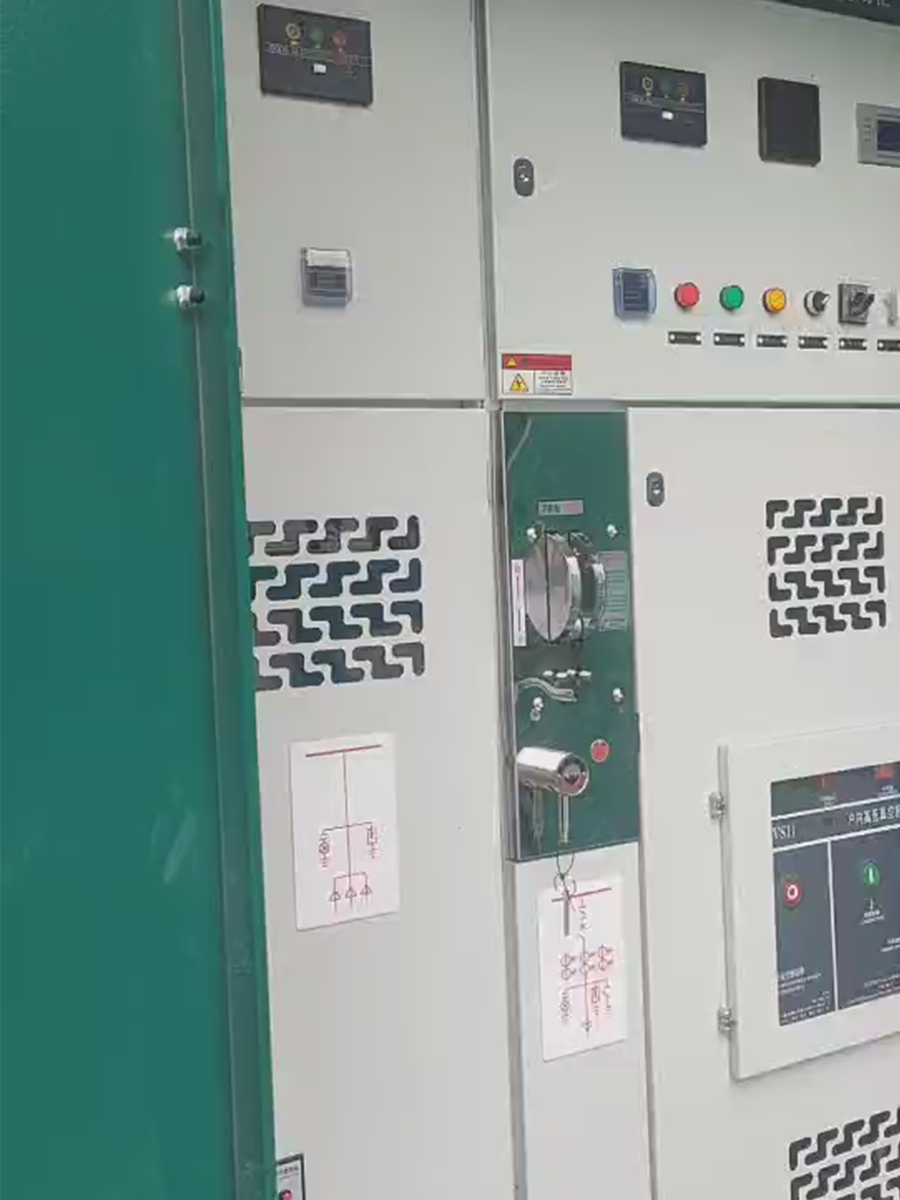

Box-typesubstationUtilisingourVCB

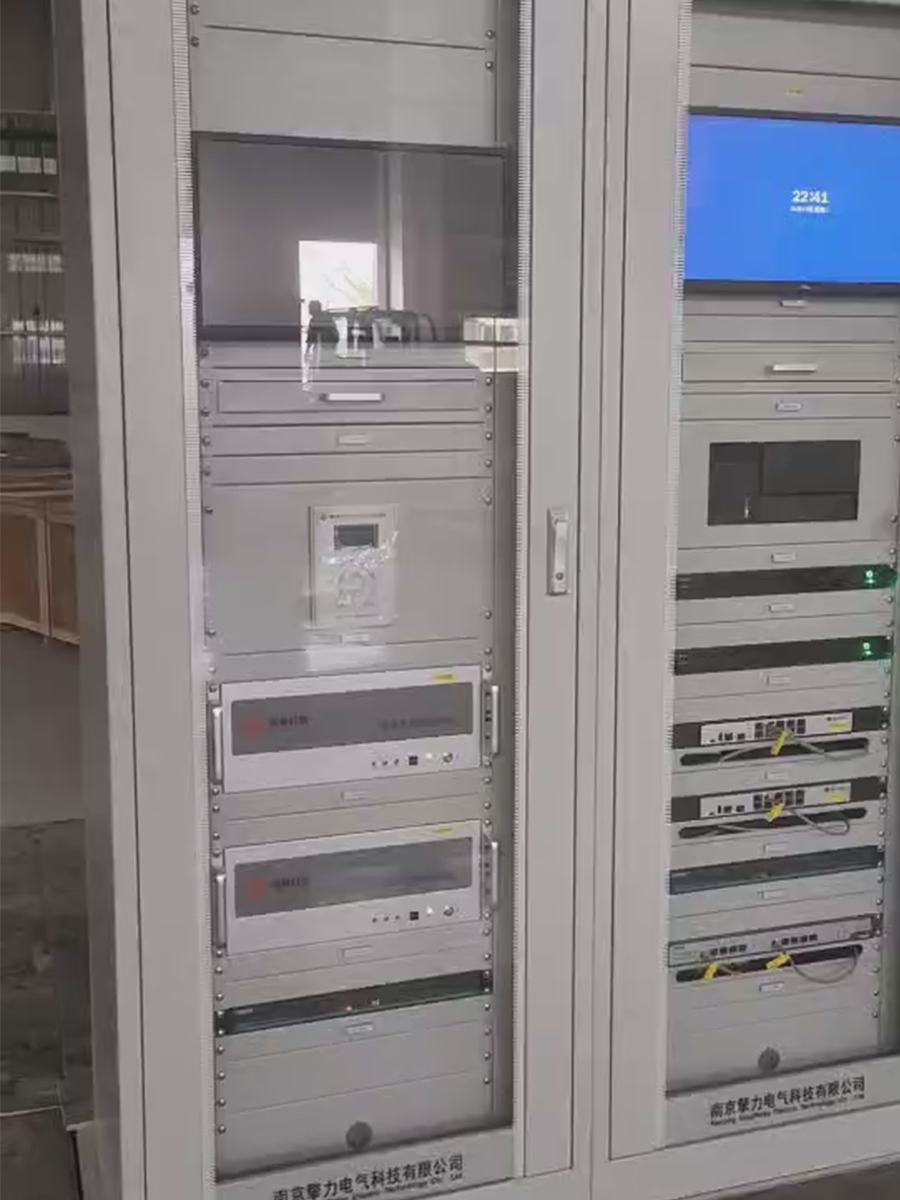

HighandLowVoltageSwitchgearACBMCCBVCB

Product Model	Current Range	Three-phase motor
GV2-ME01C	0.1–0.16A	-
GV2-ME02C	0.16–0.25A	-
GV2-ME03C	0.25–0.4A	-
GV2-ME04C	0.4–0.63A	-
GV2-ME05C	0.63–1A	-
GV2-ME06C	1–1.6A	0.37KW
GV2-ME07C	1.6–2.5A	0.75KW
GV2-ME08C	2.5–4A	1.5KW
GV2-ME10C	4–6.3A	2.2KW
GV2-ME14C	6–10A	4KW
GV2-ME16C	9–14A	5.5KW
GV2-ME20C	13–18A	7.5KW
GV2-ME21C	17–23A	11KW
GV2-ME22C	20–25A	11KW
GV2-ME32C	24–32A	15KW

Model	Current Range	Trip Current	Supporting Attochments
GV2-ME01C	0.1A~0.16A	1.5A	Side Mounted Contoct: GV-AE1 GV-AE11 GV-AE20 Formal Contact Point: GV-AN11 GV-AN20 Side Mounted Contoct: (fault indication) GV-AD1010 GV-AD1001 GV-AD0110 GV-AD0101
GV2-ME02C	0.16A~0.25A	2.4A
GV2-ME03C	0.25A~0.4A	5A
GV2-ME04C	0.4A~0.63A	8A
GV2-ME05C	0.63A~1A	13A
GV2-ME06C	1A~1.6A	22.5A
GV2-ME07C	1.6A~2.5A	33.5A
GV2-ME08C	2.5A~4A	51A
GV2-ME10C	4A~6.3A	78A
GV2-ME14C	6A~10A	138A
GV2-ME16C	9A~14A	170A
GV2-ME20C	13A~18A	223A
GV2-ME21C	17A~23A	327A
GV2-ME22C	20A~25A	327A
GV2-ME32C	24A~32A	416A

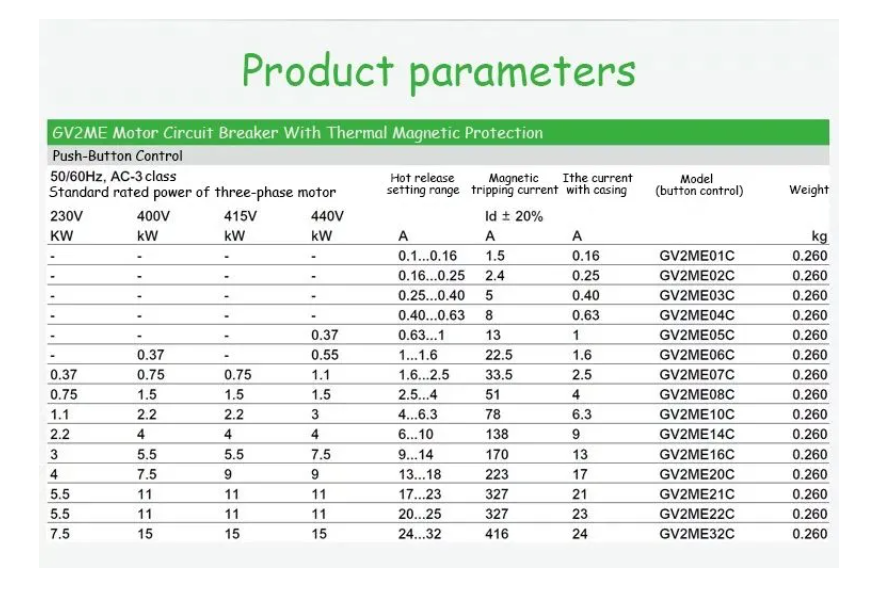

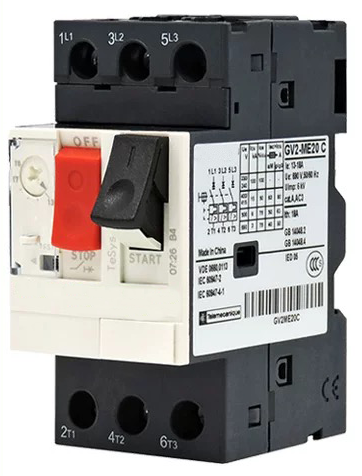

GV2ME Motor Circuit Breaker With Thermal Magnetic Protection

50/60Hz,AC-3class Standard rated power of three-phase motor				Hot release setting range(A)	Magnetic tripping current Id ±20% (A)	Ithe current with casing (A)	Model	Weight (kg)
230V (kW)	400V (kW)	415V (kW)	440V (kW)	Hot release setting range(A)	Magnetic tripping current Id ±20% (A)	Ithe current with casing (A)	Model	Weight (kg)
-	-	-	-	0.1…0.16	1.5	0.16	GV2ME01C	0.26
-	-	-	-	0.16…0.25	2.4	0.25	GV2ME02C	0.26
-	-	-	-	0.25…0.40	5	0.4	GV2ME03C	0.26
-	-	-	-	0.40…0.63	8	0.63	GV2ME04C	0.26
-	0.37	-	0.37	0.63…1	13	1	GV2ME05C	0.26
0.37	0.37	0.75	0.55	1…1.6	22.5	1.6	GV2ME06C	0.26
0.75	0.75	0.75	1.1	1.6…2.5	33.5	2.5	GV2ME07C	0.26
1.1	1.5	1.5	1.5	2.5…4	51	4	GV2ME08C	0.26
2.2	2.2	2	3	4…6.3	78	6.3	GV2ME10C	0.26
2.2	4	4	4	6…10	138	9	GV2ME14C	0.26
3	5.5	5.5	7.5	9…14	170	13	GV2ME16C	0.26
4	7.5	9	9	13…18	223	17	GV2ME20C	0.26
5.5	11	11	11	17…23	327	21	GV2ME21C	0.26
5.5	11	11	11	20…25	327	23	GV2ME22C	0.26
7.5	15	15	15	24…32	416	24	GV2ME32C	0.26
