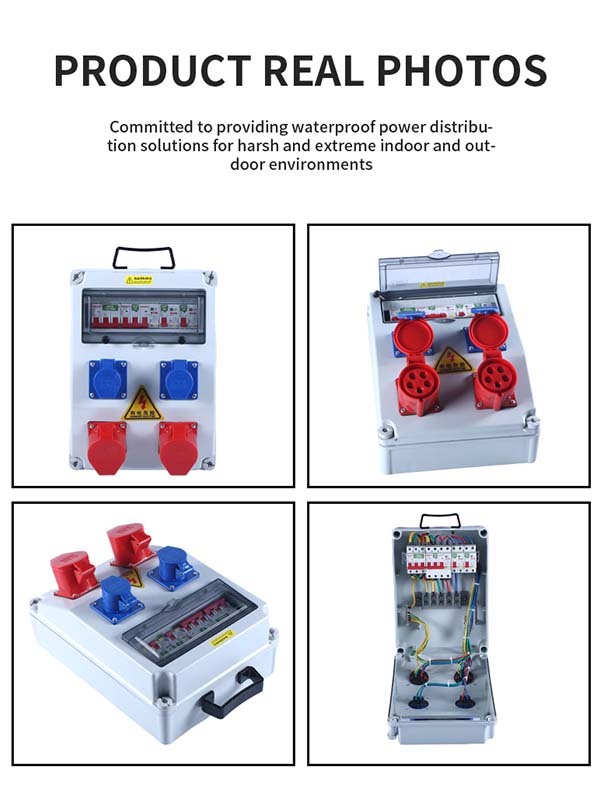

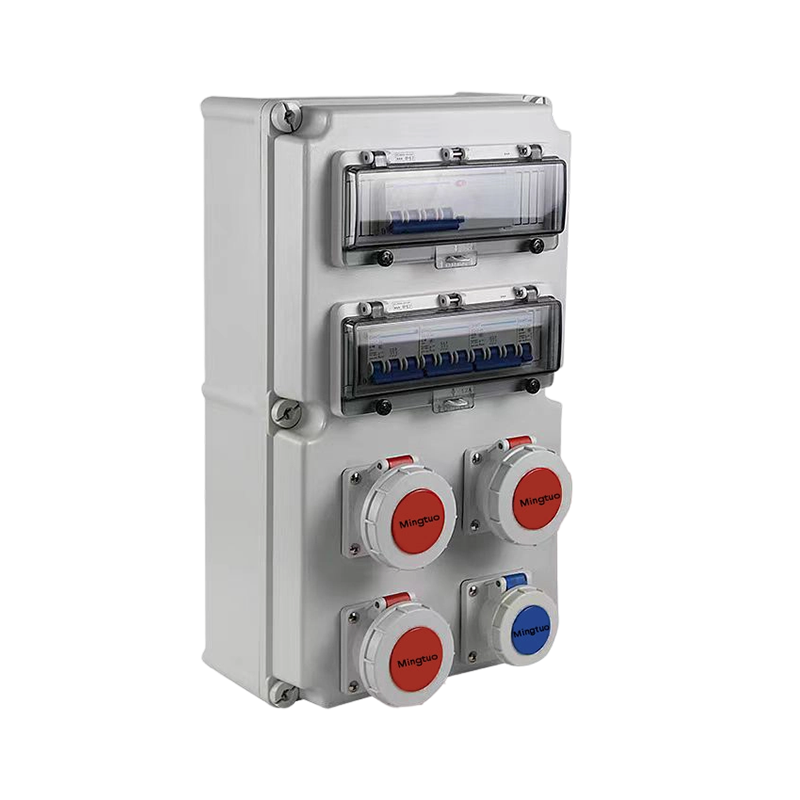

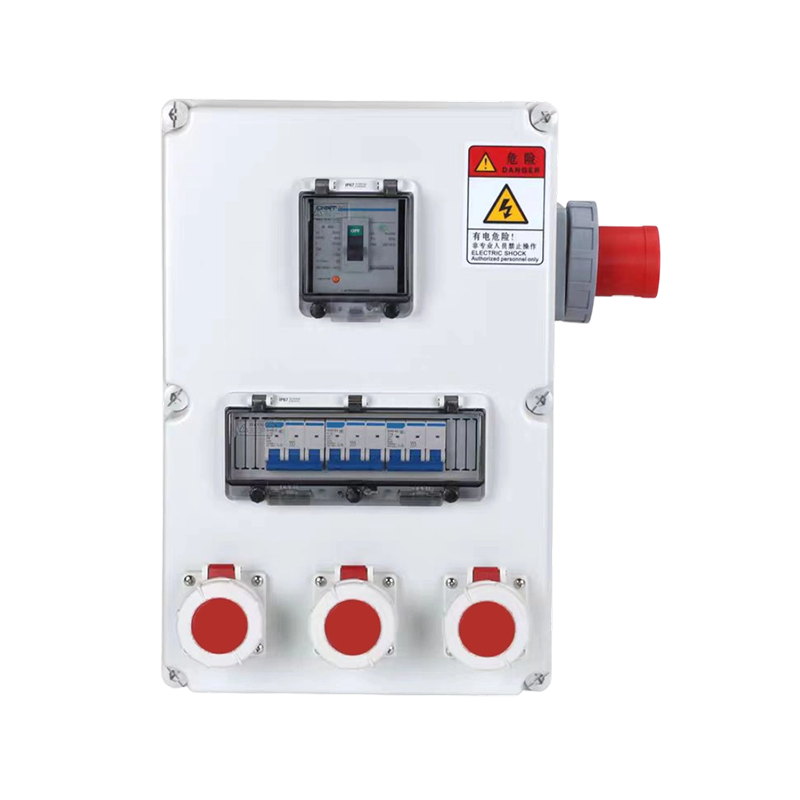

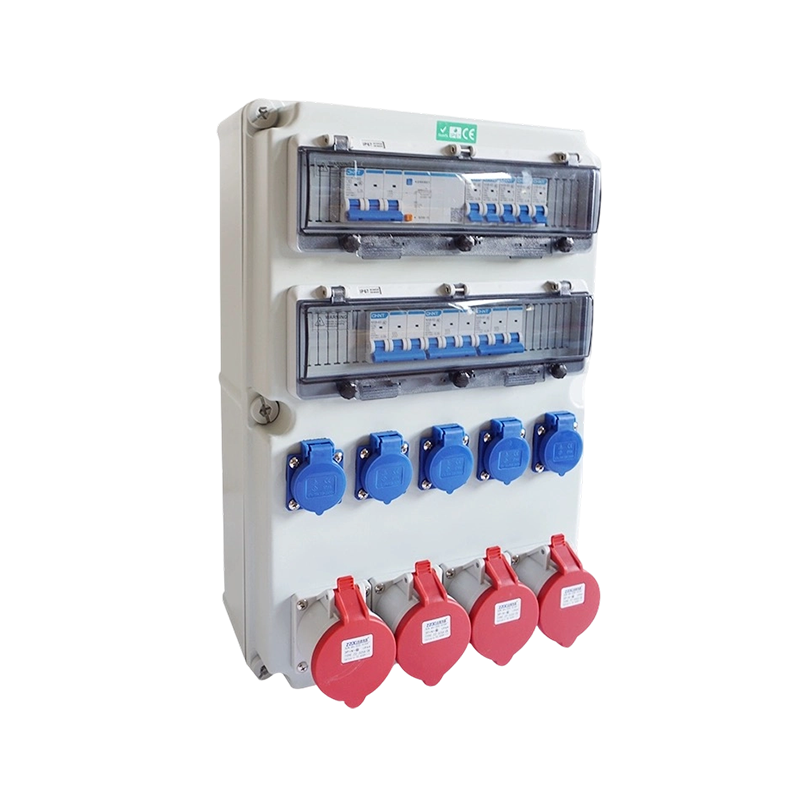

The MINGTUO IP67 Industrial Waterproof Socket Box is built to provide reliable and stable electrical connections in demanding environments. Its precision-molded stainless steel or high-grade engineering plastic enclosure, combined with advanced sealing technology, ensures outstanding protection against water, dust, and mechanical impacts. This design complies with strict international electrical safety standards, making it suitable for industrial, outdoor, maritime, and harsh environmental applications.
Main Specifications
Protection Rating: IP66 / IP67 / IP68 (customizable)
Rated Current: 16A / 32A / 63A / 125A
Rated Voltage: 220V / 380V / 480V
Material Options: 304 / 316 stainless steel, or durable PC+ABS plastics
Cable Gland Sizes: PG9–PG21 / M20–M63
Dimensions: 200×150×100mm to 400×300×200mm
Mounting Options: Wall-mounted, pole-mounted, or floor-mounted

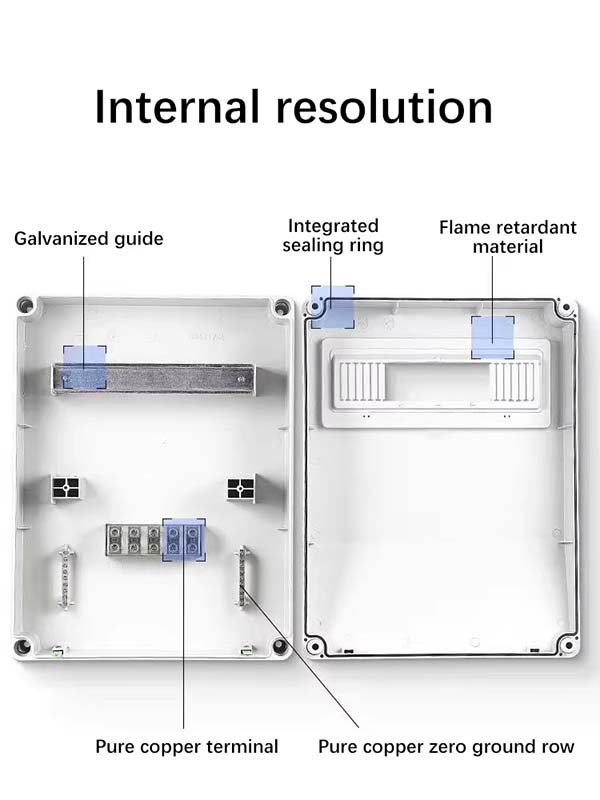

Design & Technical Features
Multi-layer silicone gaskets for reliable dustproof and waterproof performance
Corrosion-resistant stainless steel hinges

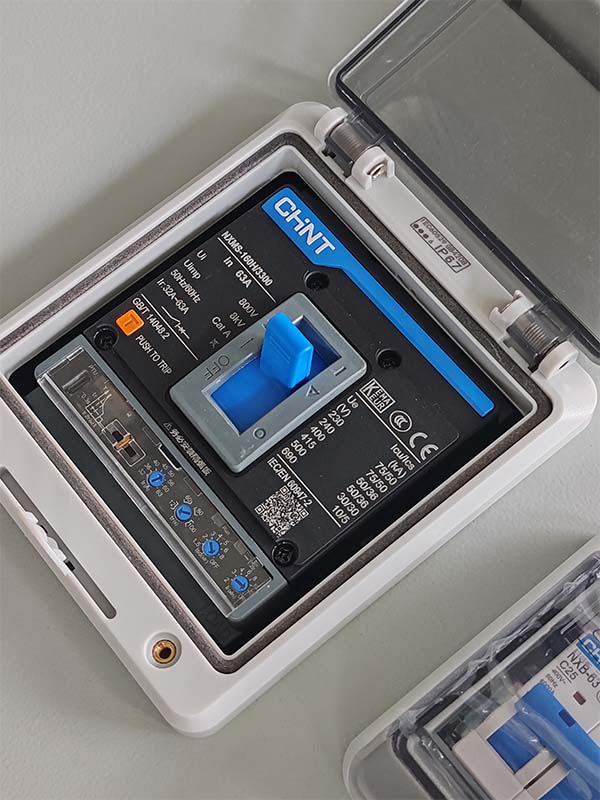

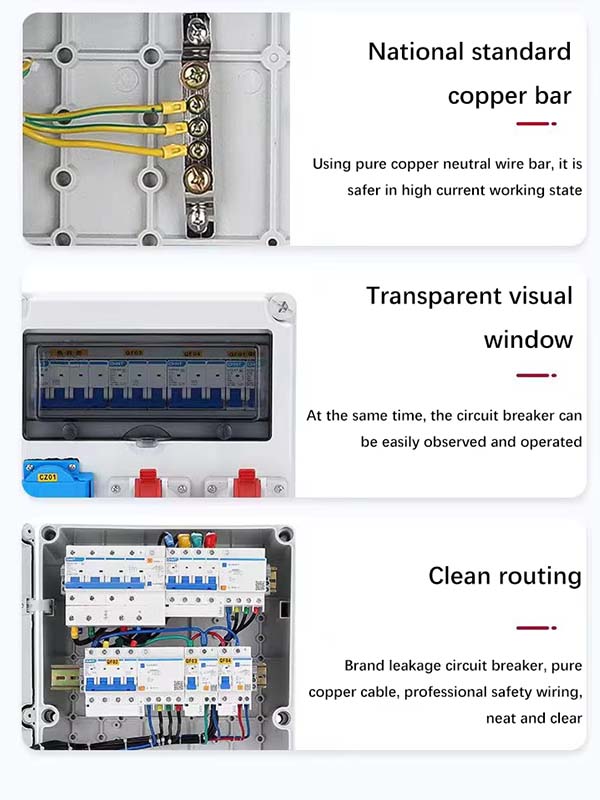

Transparent polycarbonate cover for easy visual inspection

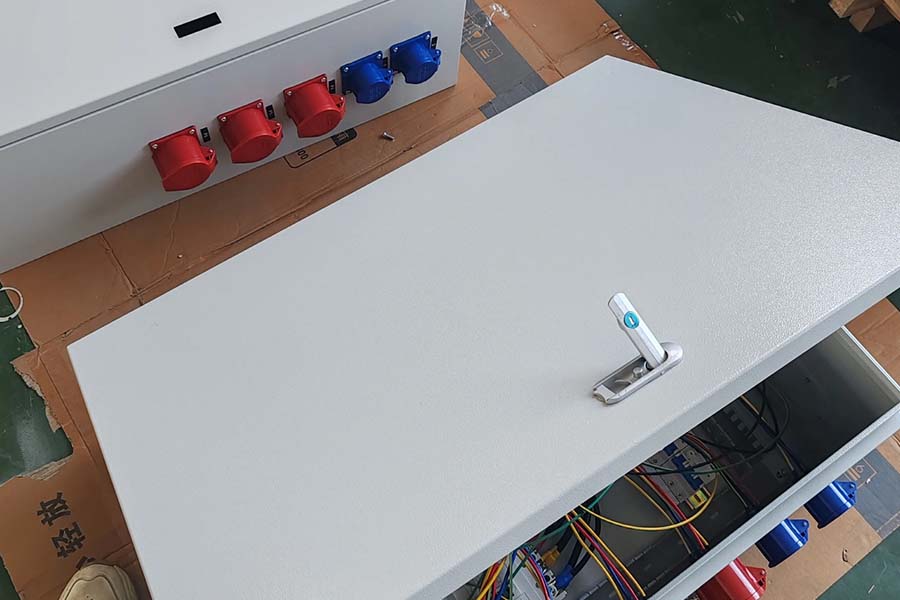

Dual safety locking system

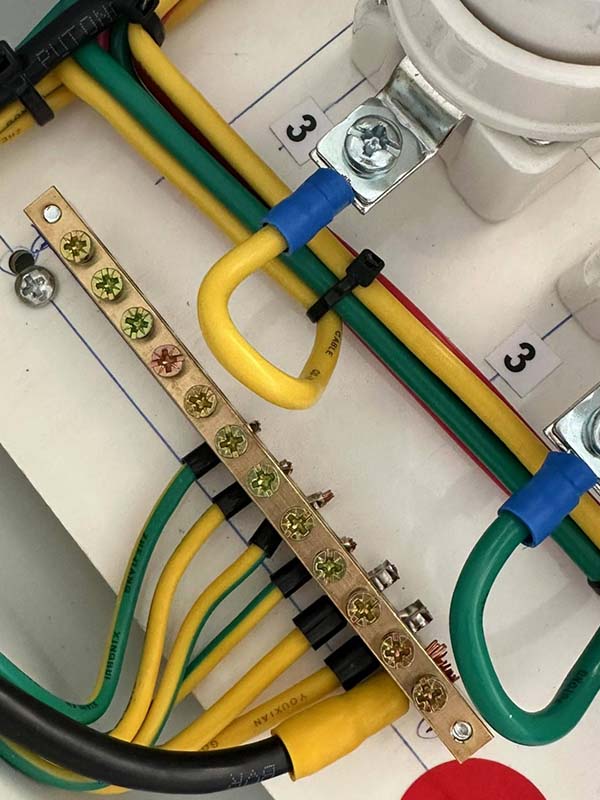

Dedicated grounding terminal in compliance with IEC 60364

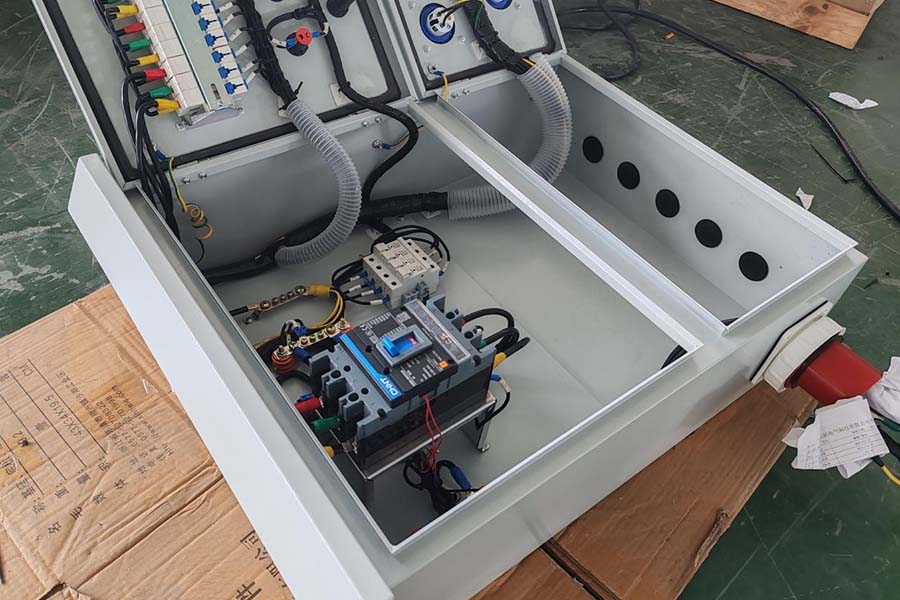

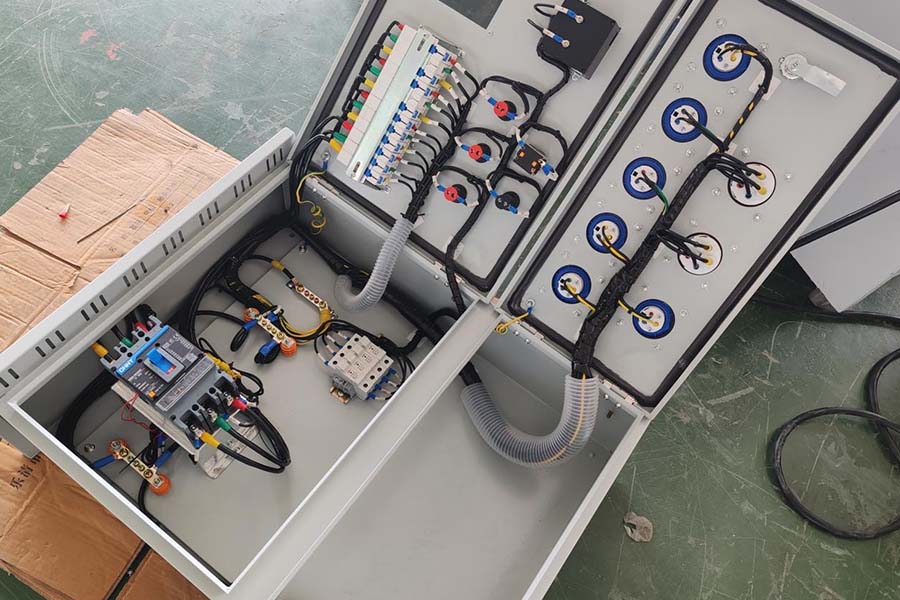

Modular internal mounting plate allowing tool-free component installation
Tested for impact resistance, dielectric strength, and corrosion protection
Primary Applications

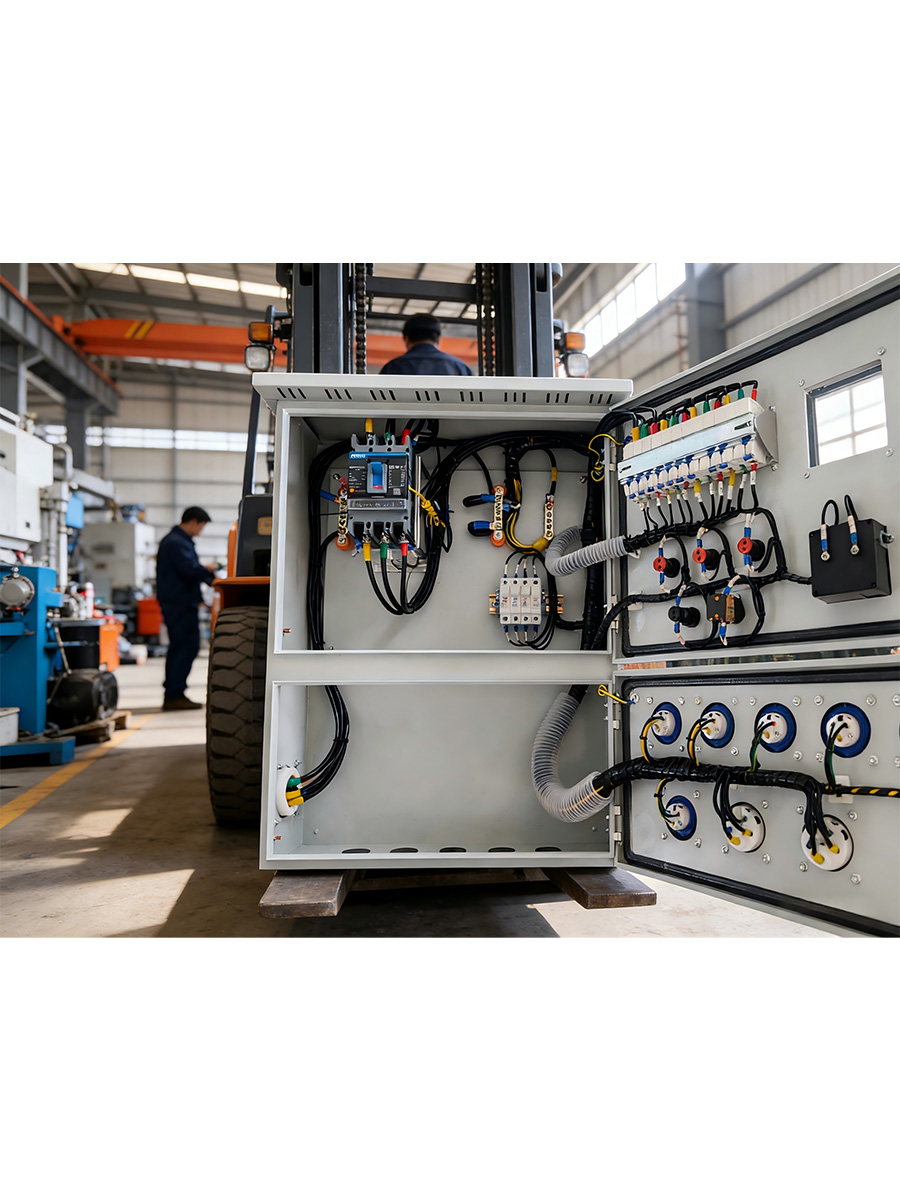

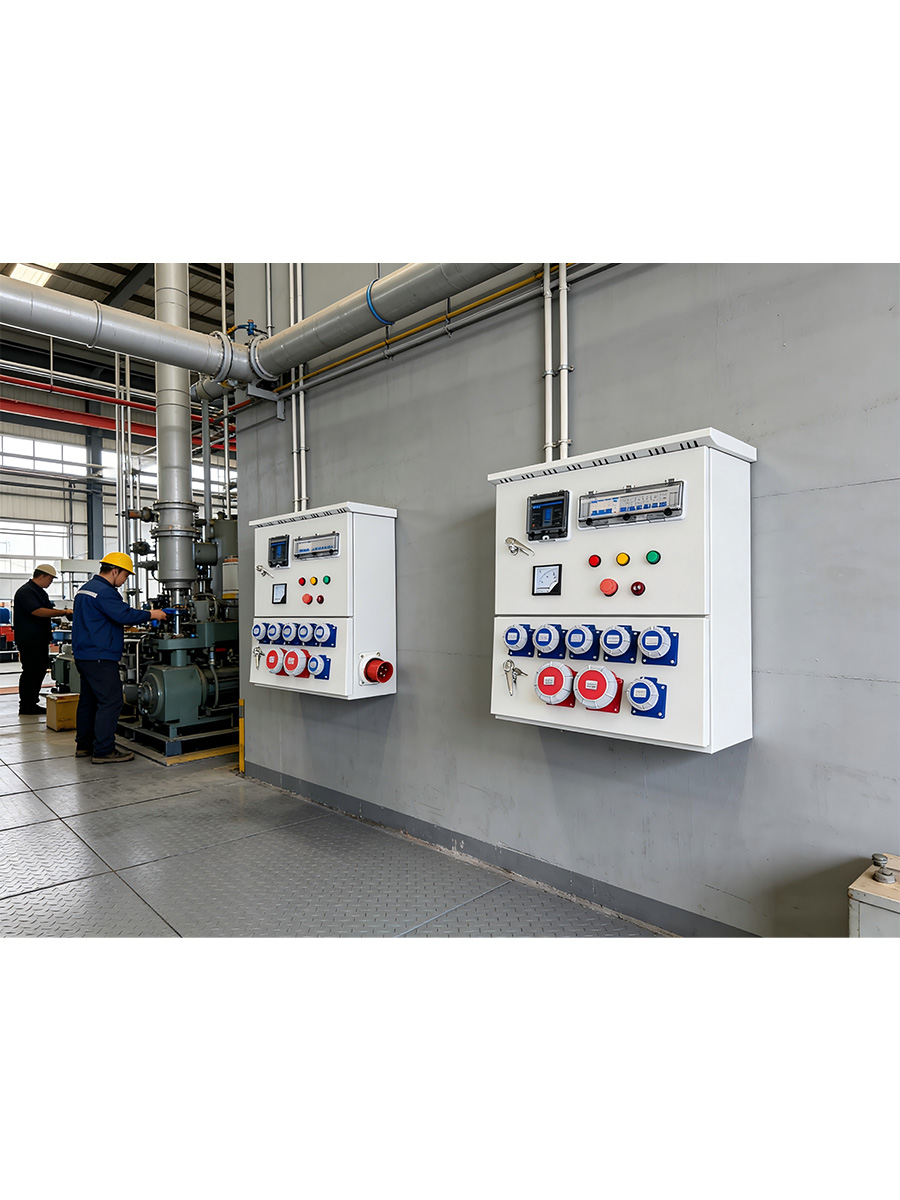

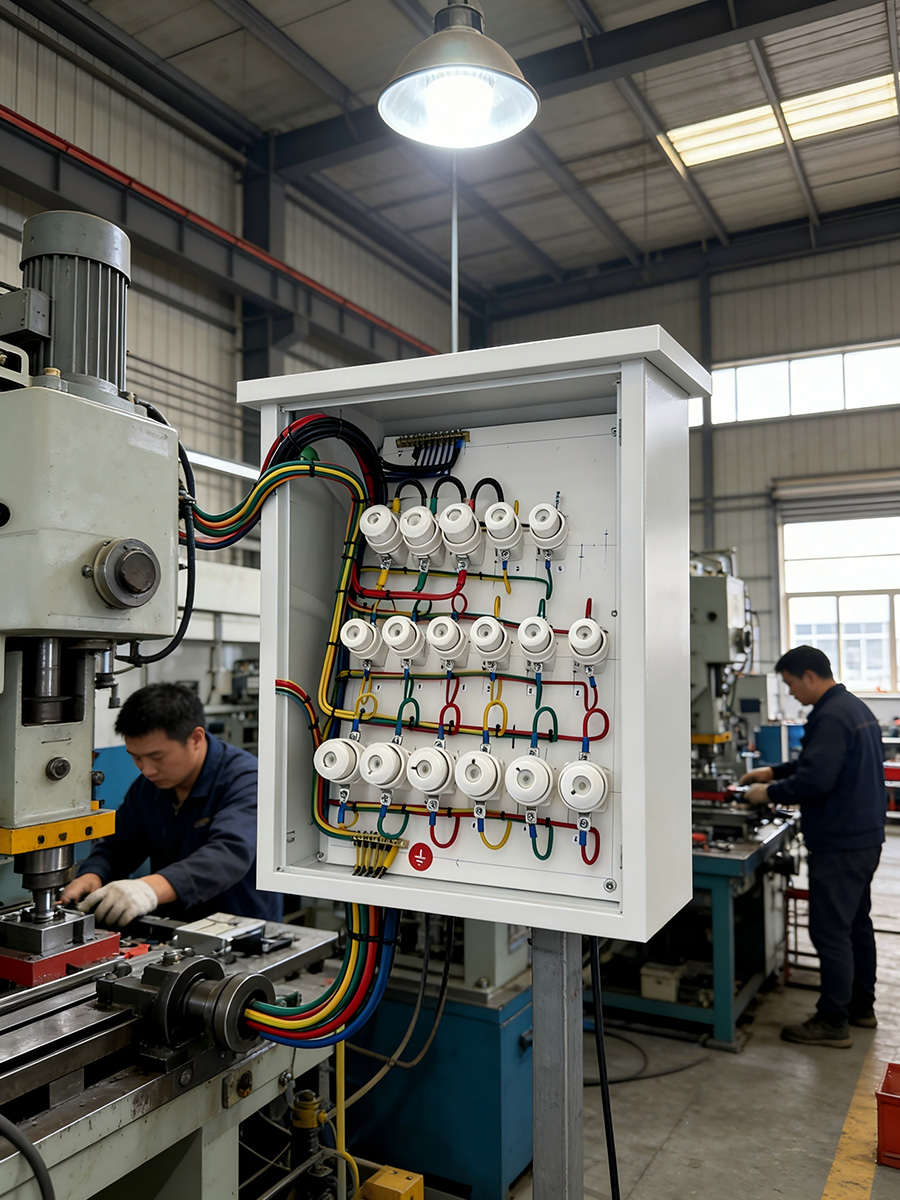

Industrial Manufacturing: Power connections for production lines, automated machinery, temporary mobile equipment, and workshop systems

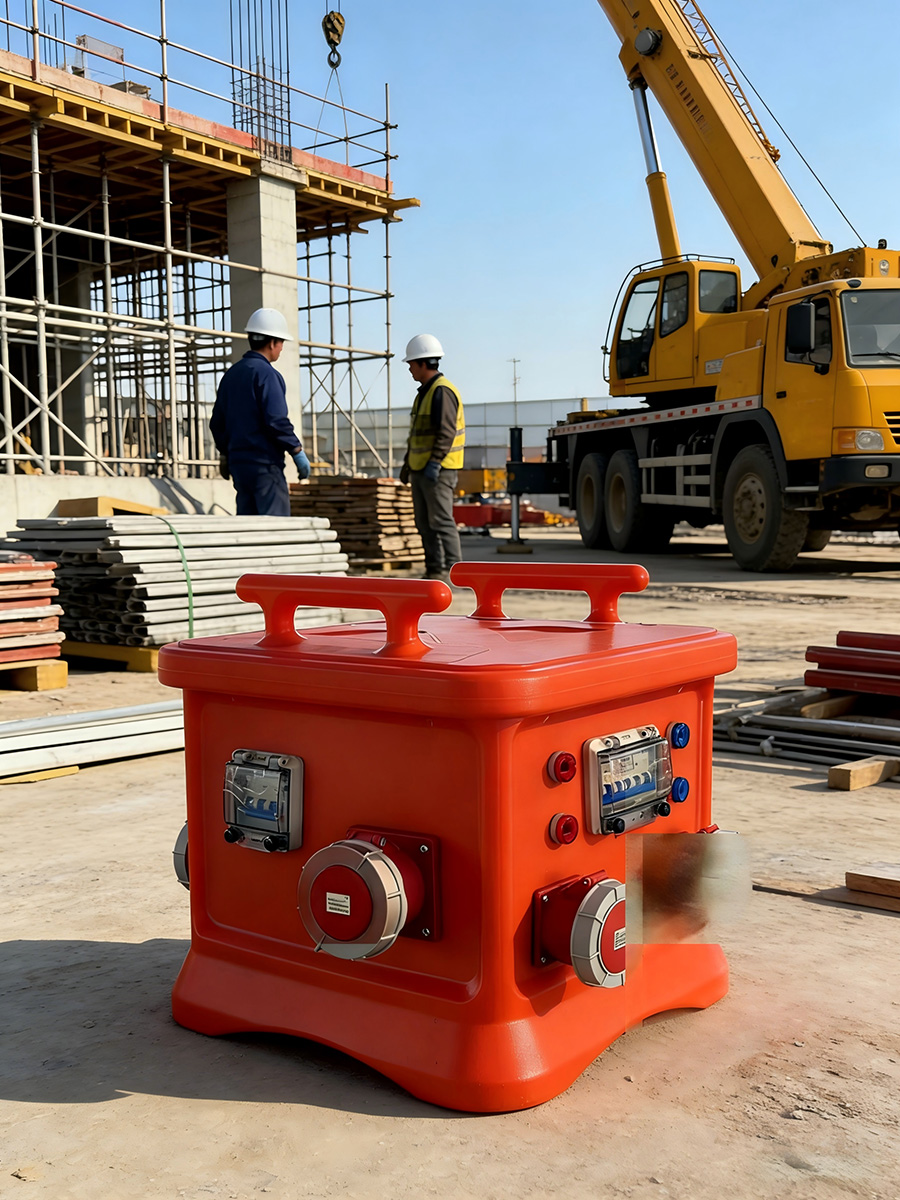

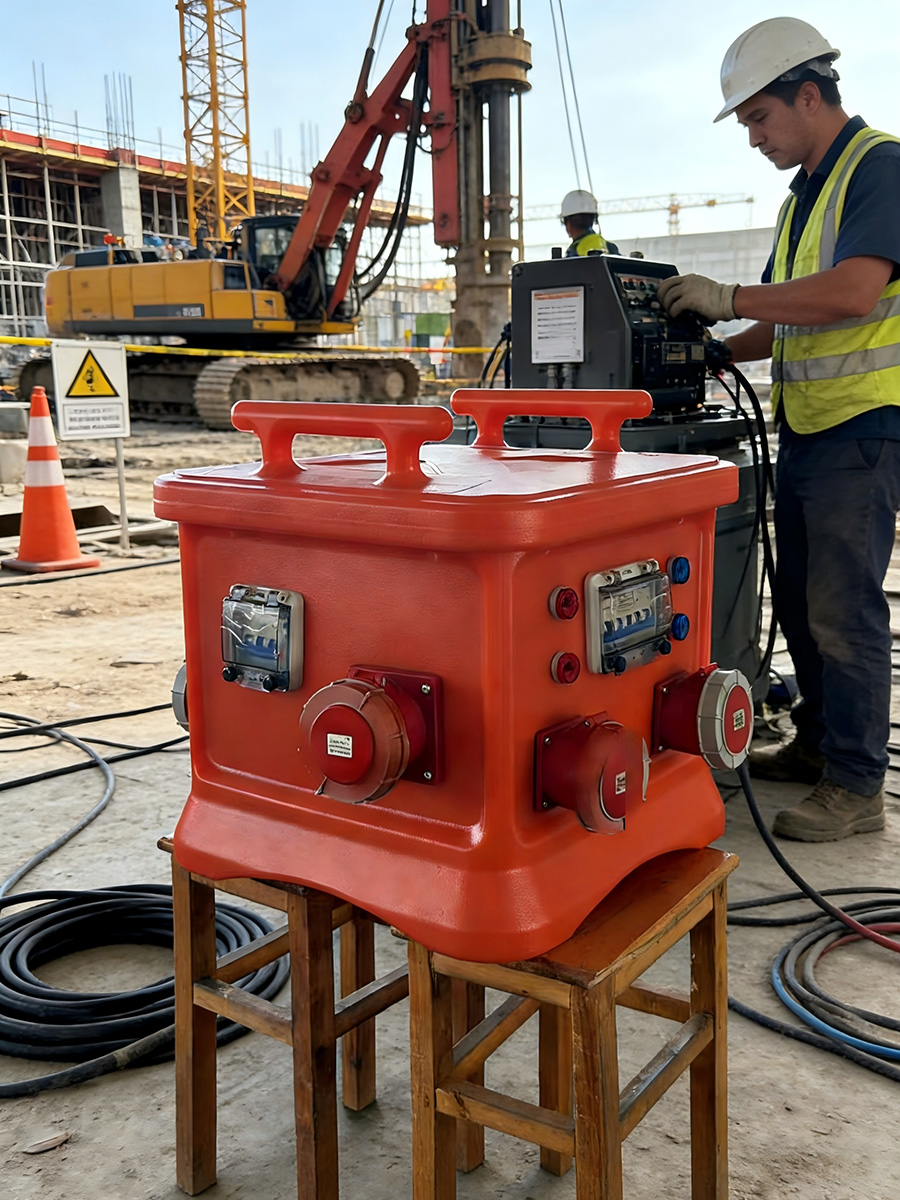

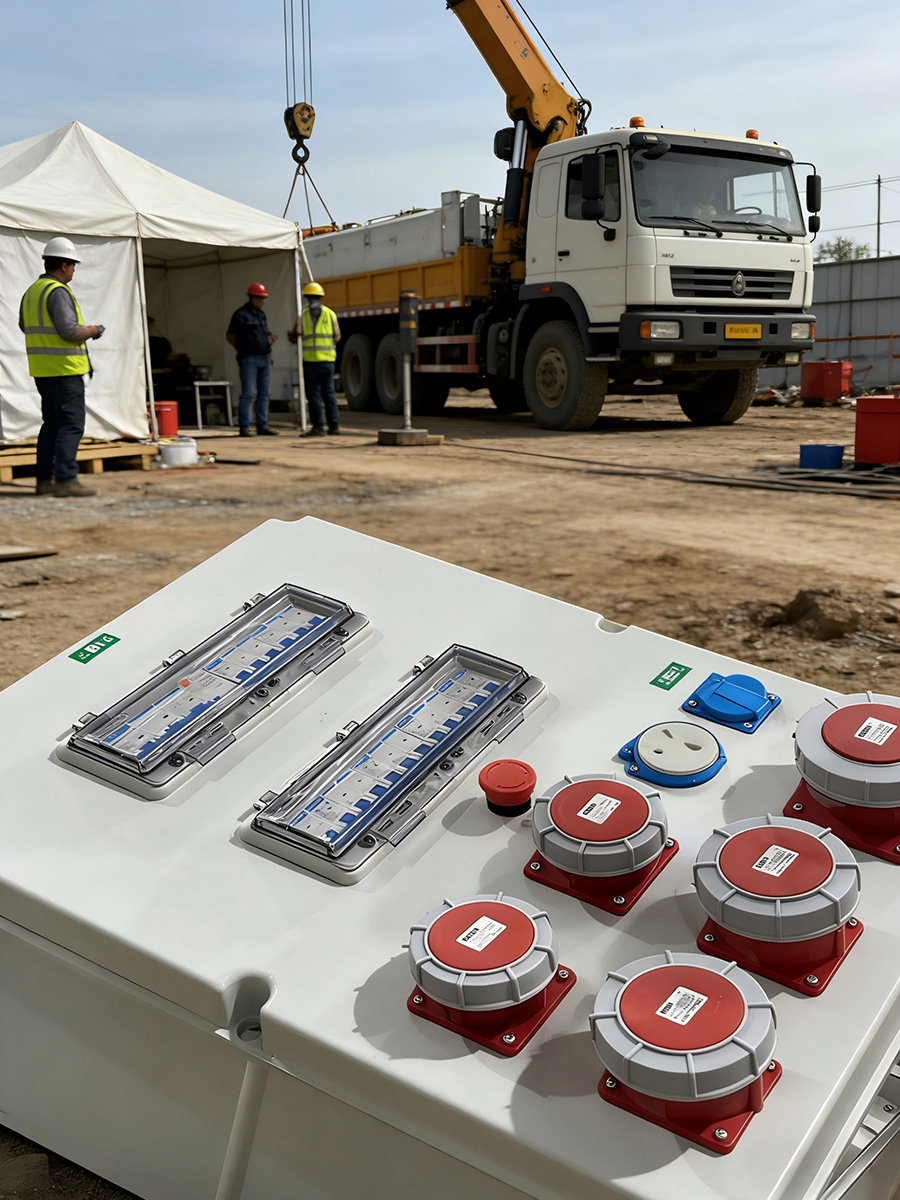

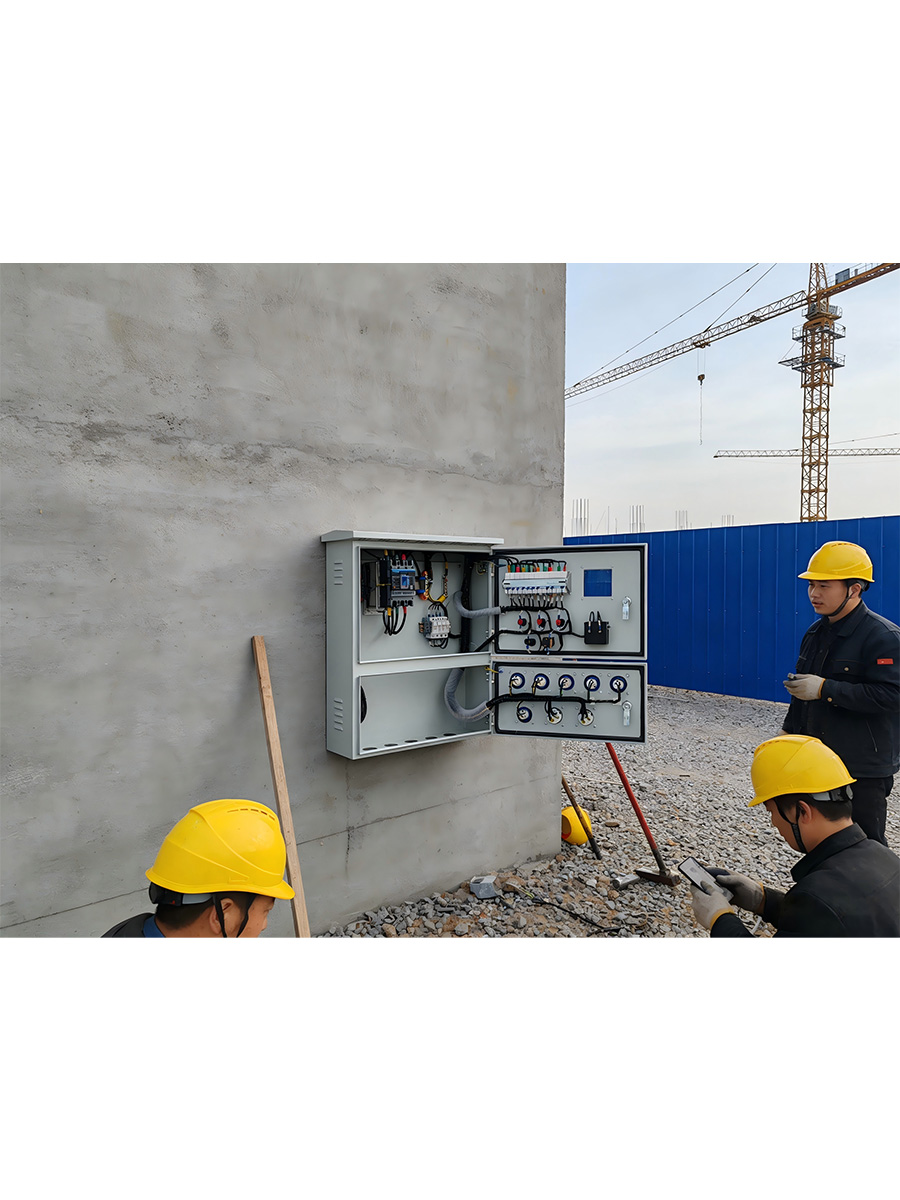

Construction & Outdoor Work Sites: Temporary or permanent power distribution for construction zones, municipal projects, outdoor events, and temporary lighting
Marine & Offshore Facilities: Saltwater-resistant enclosures for ports, docks, and offshore platforms
Mining & Heavy Industry: Dustproof, shock-resistant power connections for mines and quarries
Food & Chemical Processing: Hygienic, corrosion-resistant enclosures for sensitive equipment
Public Infrastructure: EV charging stations, outdoor lighting, landscape power, and electrical support for sports venues
Performance & Reliability
Insulation resistance ≥100MΩ; withstand voltage 2000V AC (1 minute)
Mechanical life ≥10,000 open-close cycles
Operating temperature range: -40°C to +85°C
Shock resistance rating: IK08
Corrosion resistance rating: C4-M
Maintenance-free period: 5 years
Optional Configurations
Viewing window in tempered glass
Triple anti-theft locking system
Mounting rail for internal components

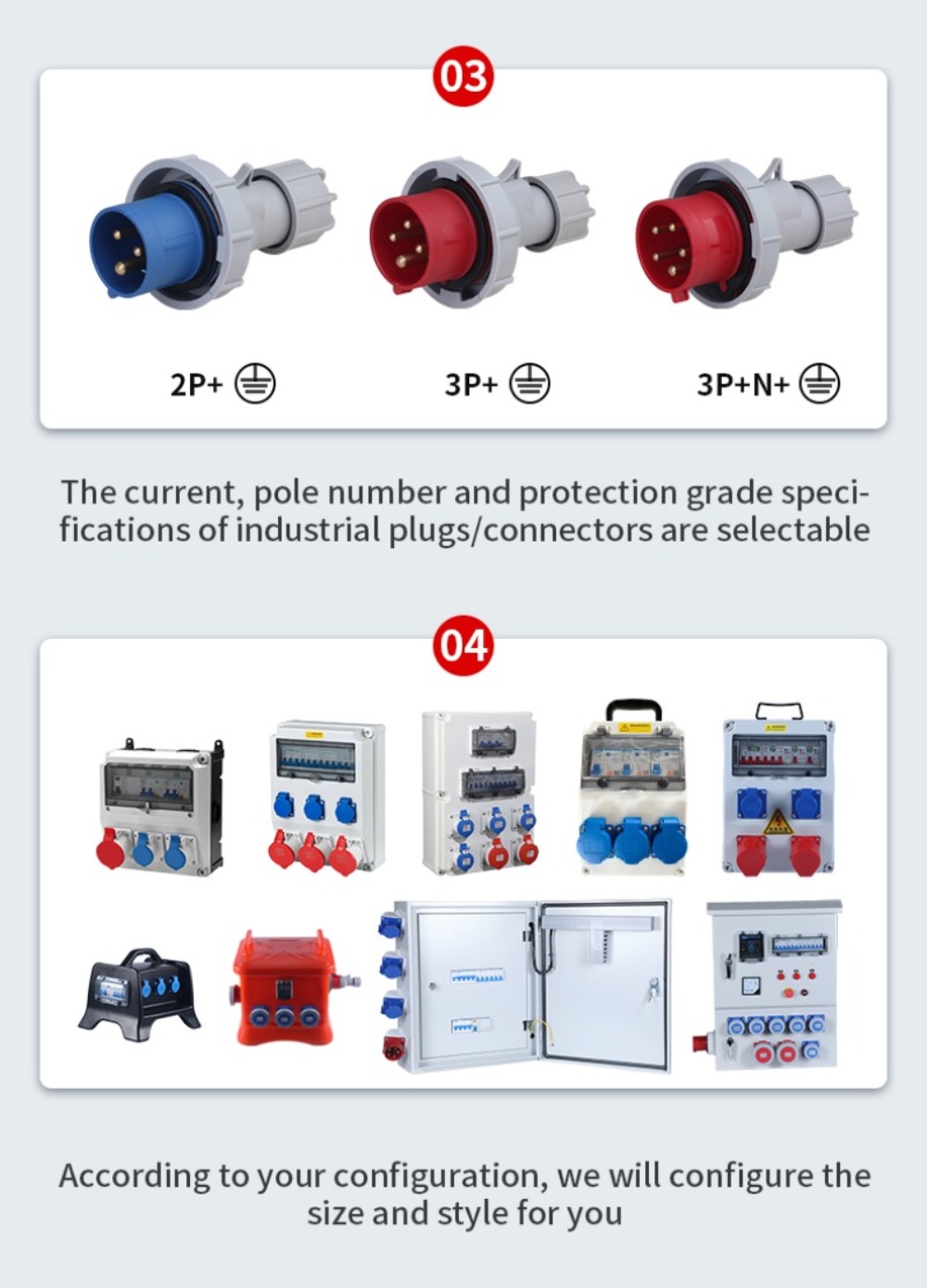

Custom logo printing, special colors, and tailored dimensions
Competitive Advantages
- High-Level Protection: Triple-sealing design ensures IP67/IP68 water tightness, verified via immersion and impact tests; UV-resistant materials for extreme outdoor conditions
- Premium Materials: 316 stainless steel for corrosive environments; PC+ABS plastics are military-grade and self-extinguishing (UL94 V-0); salt spray resistance >2000 hours
- Intelligent Engineering: Tool-free cover access, 360° cable entry, integrated mounting rails, transparent cover for quick inspection
- Durable & Reliable: Mechanical endurance up to 15,000 cycles; temperature resistance -50°C to +120°C; 10-year anti-corrosion performance
- Strict Quality Assurance: 100% pre-shipment pressure testing; IEC 60529, IEC 60309, and UL50 compliance; third-party laboratory validation
- Customization: Rapid color matching, laser engraving, custom dimensions and hole positions, mixed packaging options
- Service Advantages: Express delivery in 15 days for standard models, free samples for qualified buyers, 24/7 multilingual technical support, on-site installation guidance
With German engineering design and Japanese manufacturing precision, these waterproof socket boxes deliver 40% longer lifespan and 50% improved sealing performance over industry averages, while reducing maintenance costs by up to 60% thanks to reliable performance and intelligent design.
