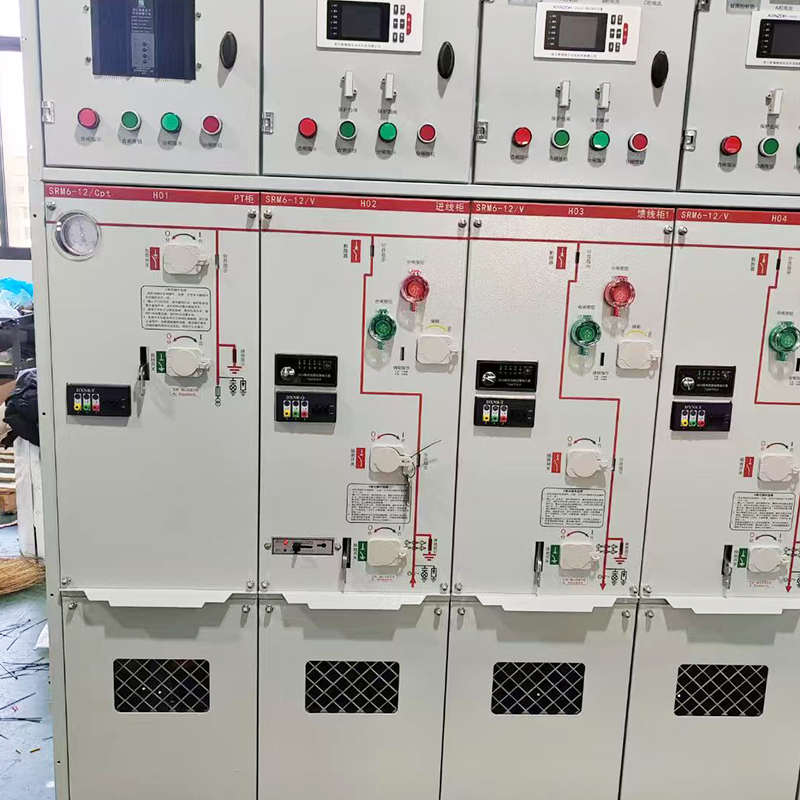

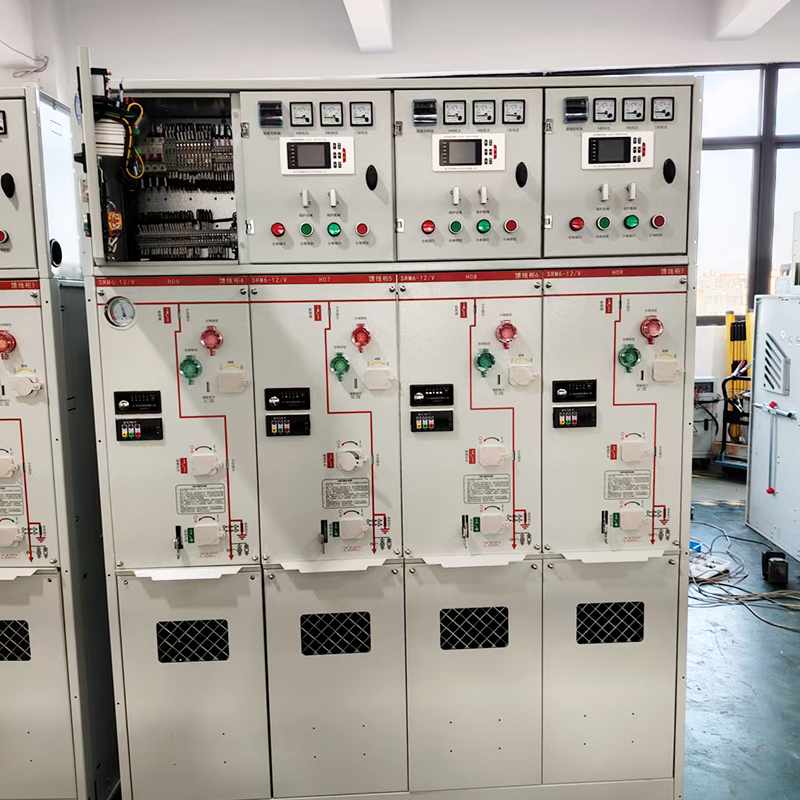

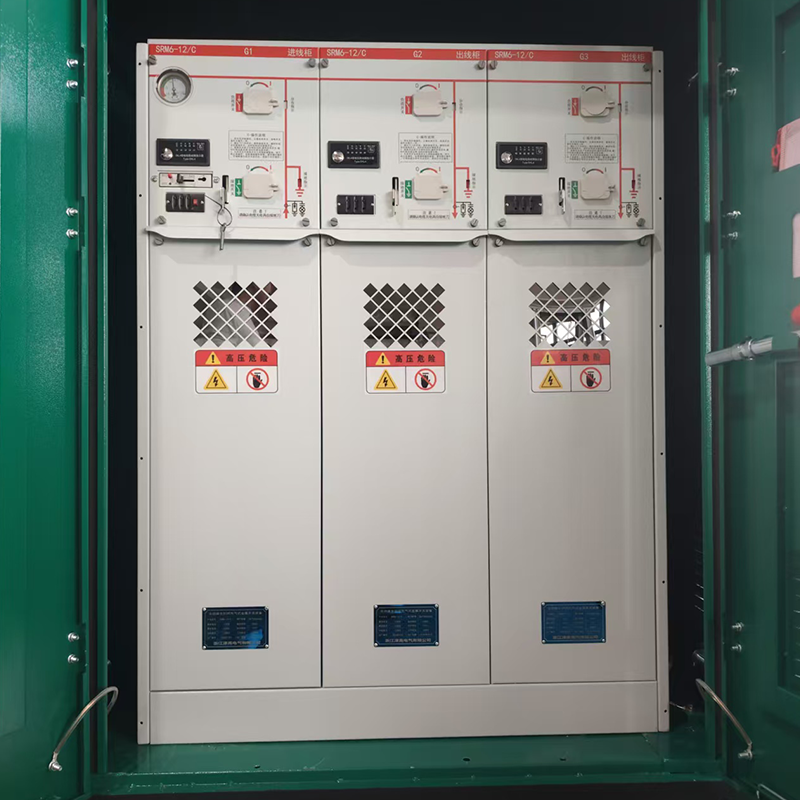

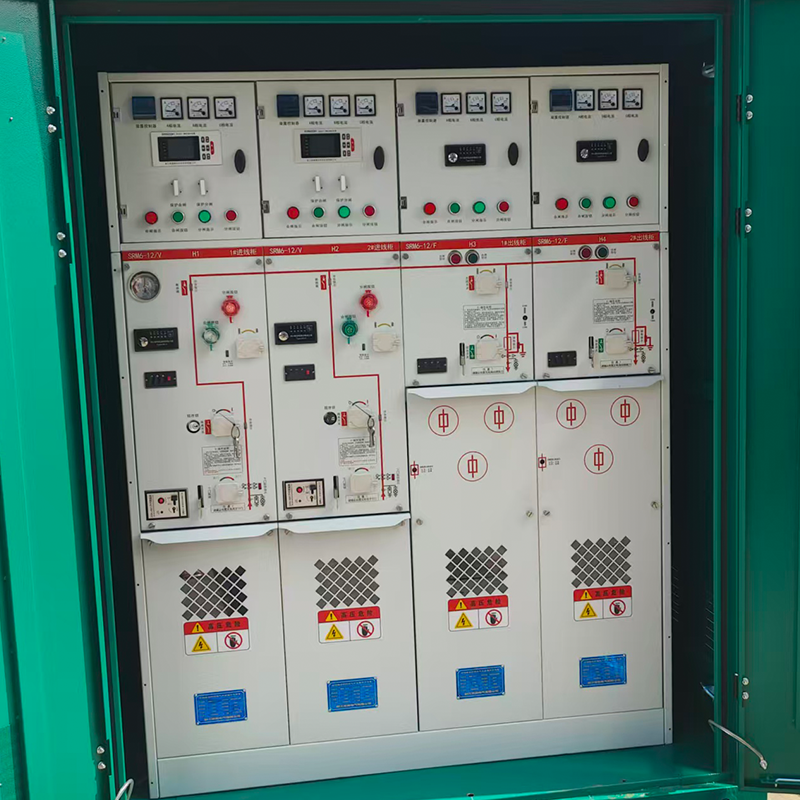

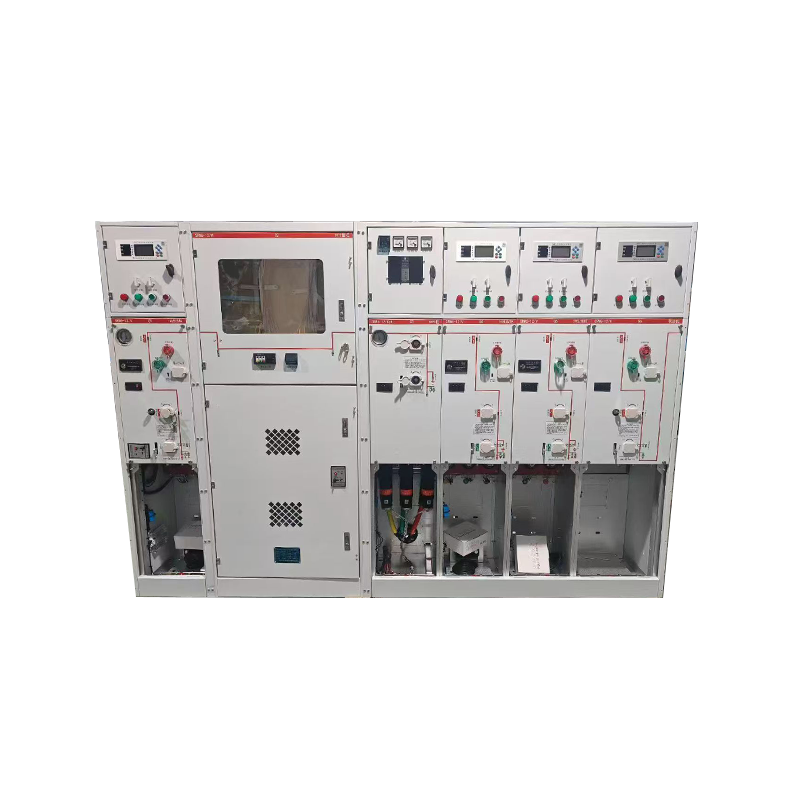

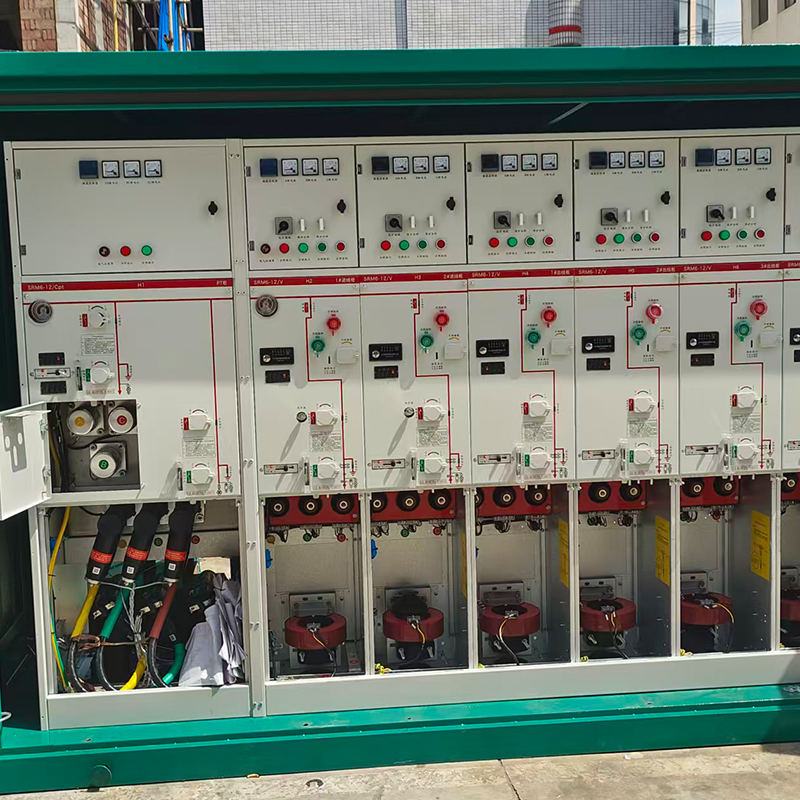

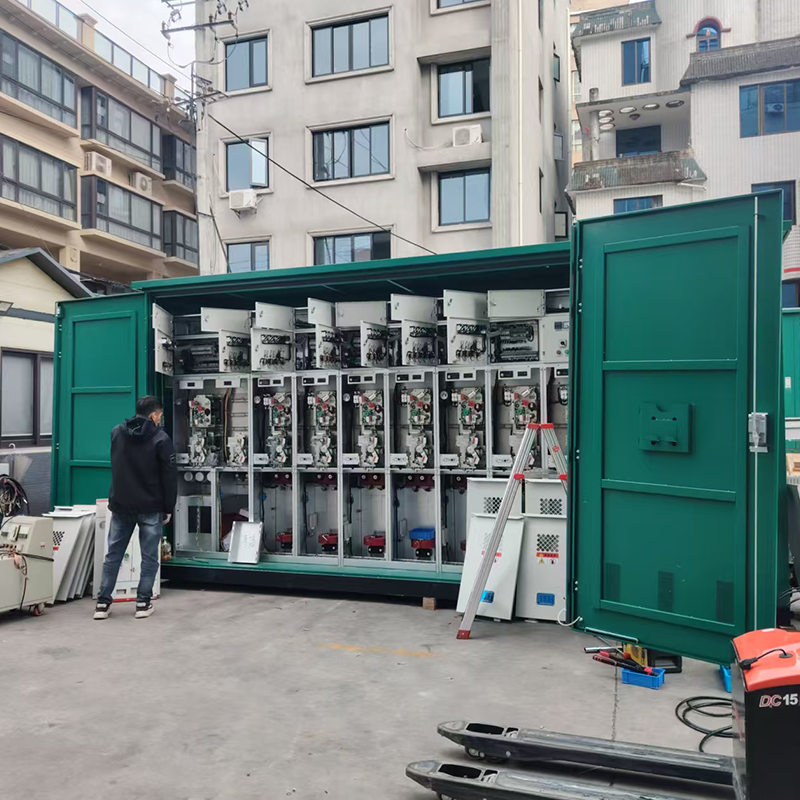

The 10kV fully sealed fully insulated gas insulated switchgear launched by Zhejiang Mingtuo Electric Technology is a compact and high-reliability medium-voltage distribution equipment for 10kV urban and rural power distribution systems. Optimized based on mainstream ring network power supply scenarios, it adopts integrated modular design, supports dry air and SF6 dual insulation media, and features small size, strong environmental adaptability and high safety. It is mainly used for ring network power supply, terminal power distribution and load switching in residential areas, commercial complexes, industrial parks and urban distribution network reconstruction projects, and can operate stably for a long time in indoor and outdoor environments.
Technical Parameters
|
Parameter Item |
Technical Specification |
|
Rated Voltage |
12kV (10kV system adaptation) |
|
Rated Current |
630A / 1250A (optional) |
|
Short-time Withstand Current (3s) |
20kA / 25kA (optional) |
|
Insulating Medium |
Dry Air / SF6 Gas (optional) |
|
Protection Grade |
IP67 (whole cabinet) |
|
Operating Environment |
Ambient temperature: -30℃ ~ +55℃; Relative humidity: ≤95% (no condensation); Altitude: ≤2000m; Adapt to outdoor rainproof, dustproof and humid working conditions |
